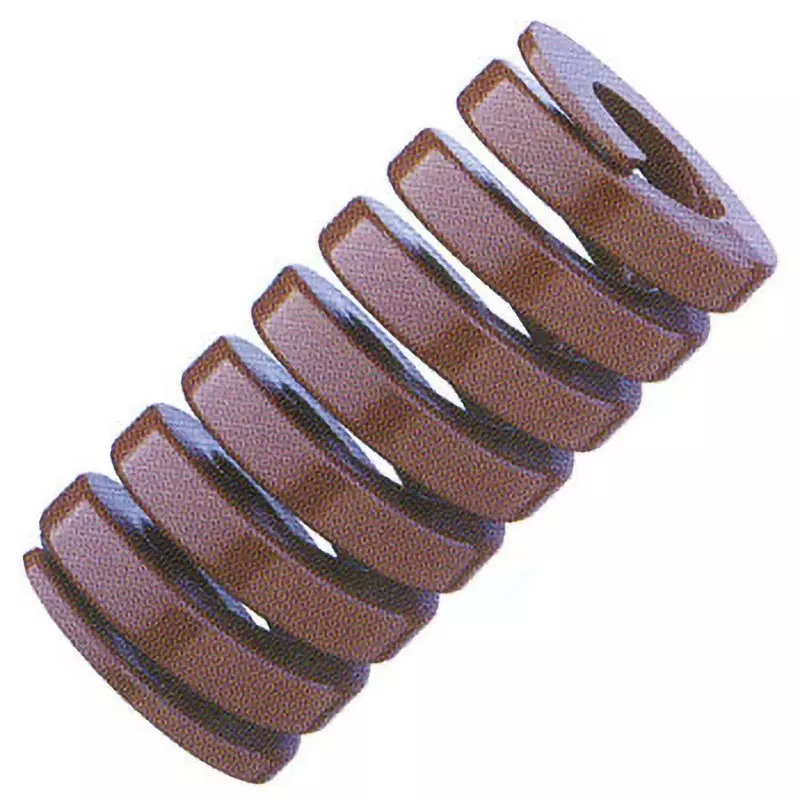

| Type of Product | Strong Spring |
| Model No | TB27×50 |
| Color | Brown |
| Material | Silicon chrome steel for spring |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Strong Spring |
Model No |
TB27×50 |
Color |
Brown |
Material |
Silicon chrome steel for spring |
Country of Origin |
Japan |
Spring Type |
Strong spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light Load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
2840[289.6] |
Spring Constant (N/mm) |
284.44 |
Deflection (300,000 times, mm) |
10 |
Deflection (1 million times, mm) |
8 |
Monotaro ID |
7051615 |
Outer Diameter (Φmm) |
27 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
2280[232.5] |
Free Length (mm) |
50 |
Inner Diameter |
13.5 mm |
Load (500000 times, N [kgf]) |
2560[261.1] |
Deflection (500,000 times, mm) |
9 |
