Ships within 19 days
View
View
View
View

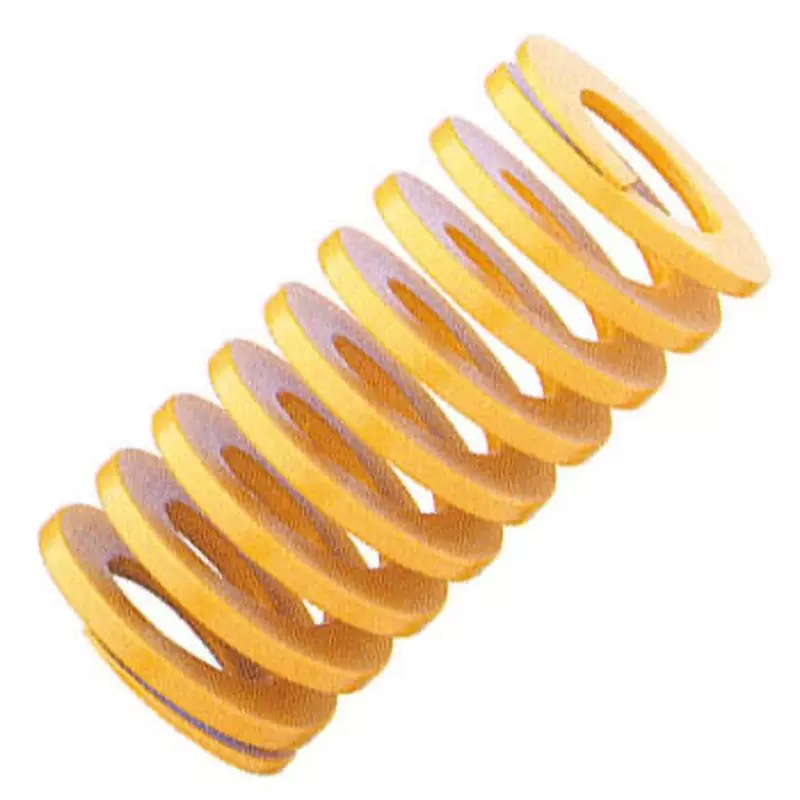

| Type of Product | Heavy Duty Die Spring |
| Model No | TF10×90 |
| Color | Yellow |
| Country of Origin | Japan |
Type of Product |
Heavy Duty Die Spring |
Model No |
TF10×90 |
Color |
Yellow |
Country of Origin |
Japan |
Spring Type |
Strong Spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light and light load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
98.1[10.0] |
Spring Constant (N/mm) |
2.1800000000000002 |
Deflection (300,000 times, mm) |
45 |
Deflection (1 million times, mm) |
36 |
Monotaro ID |
7039417 |
Outer Diameter (Φmm) |
10 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
78.5[8.0] |
Free Length (mm) |
90 |
Inner Diameter |
5 mm |
Load (500000 times, N [kgf]) |
88.3[9.0] |
Deflection (500,000 times, mm) |
40.5 |
