Ships within 25 days
View
View
View
View
| Type of Product | Disc Spring |
| Model No | A-90 |
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | Tokyo Spring Manufacturing Co., Ltd. |
Type of Product |
Disc Spring |
Model No |
A-90 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Import Country |
Direct Import from Japan |
Monotaro ID |
12362957 |
Load (N) |
(ht=H-0.75h P load)32460, (σ=0.5h P load)22380 |
Thickness Tolerance |
±0.10 mm |

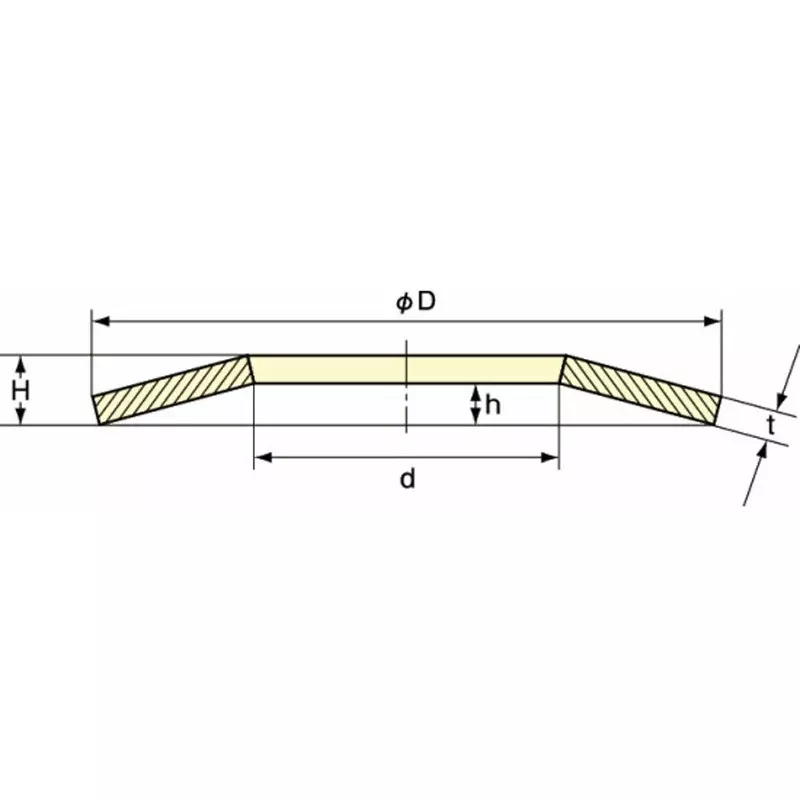

Thickness t (mm) |
5 |
Overall Length H (mm) |
7 |
Deflection (mm) |
(total deflection h)2, (σ=0.5h σ deflection)1 |
Outer Diameter D (Φmm) |
90 |
Individual Weight (g) |
180 |
Mounting Length (mm) |
(ht=H-0.75h ht installation length) 5.5 |
Inner Diameter d (Φmm) |
46 |
