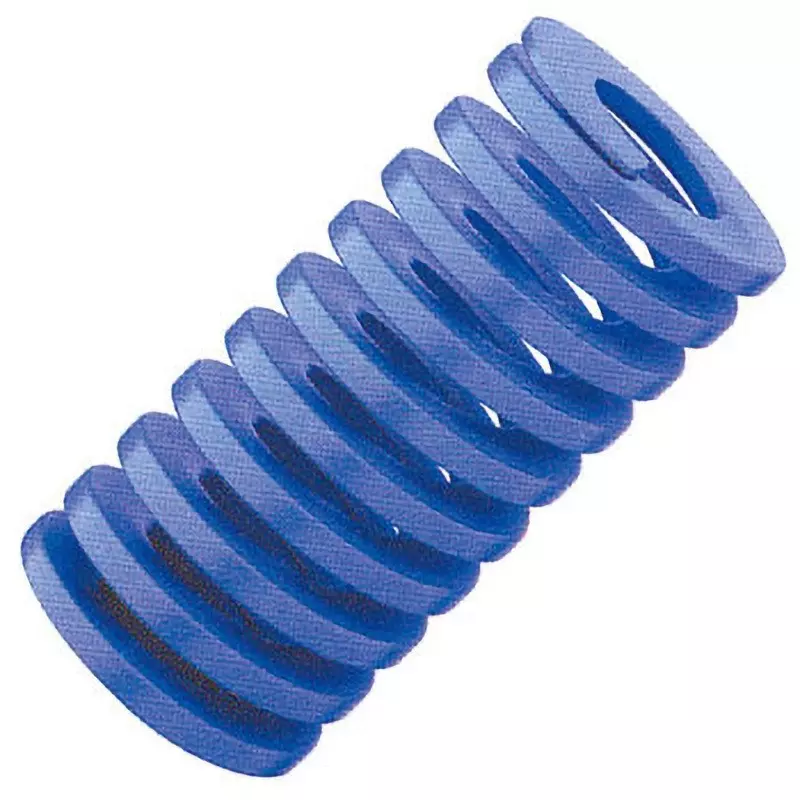

| Type of Product | Strong Spring |
| Model No | TL22×35 |
| Color | Blue |
| Material | Silicon chrome steel for spring |
Type of Product |
Strong Spring |
Model No |
TL22×35 |
Color |
Blue |
Material |
Silicon chrome steel for spring |
Country of Origin |
Japan |
Spring Type |
Strong spring |
Name of Manufacturer/Packer/Importer |
Tokyo Spring Manufacturing Co., Ltd. |
Type |
Light Load |
Import Country |
Direct Import from Japan |
Load (300000 times, N [kgf]) |
657[67.0] |
Spring Constant (N/mm) |
46.67 |
Deflection (300,000 times, mm) |
14 |
Deflection (1 million times, mm) |
11.2 |
Monotaro ID |
7043985 |
Outer Diameter (Φmm) |
22 |
Operating Temperature Range |
150 to -30℃ |
Load (1 million times, N [kgf]) |
530[54.0] |
Free Length (mm) |
35 |
Inner Diameter |
11 mm |
Load (500000 times, N [kgf]) |
588[60.0] |
Deflection (500,000 times, mm) |
12.6 |
