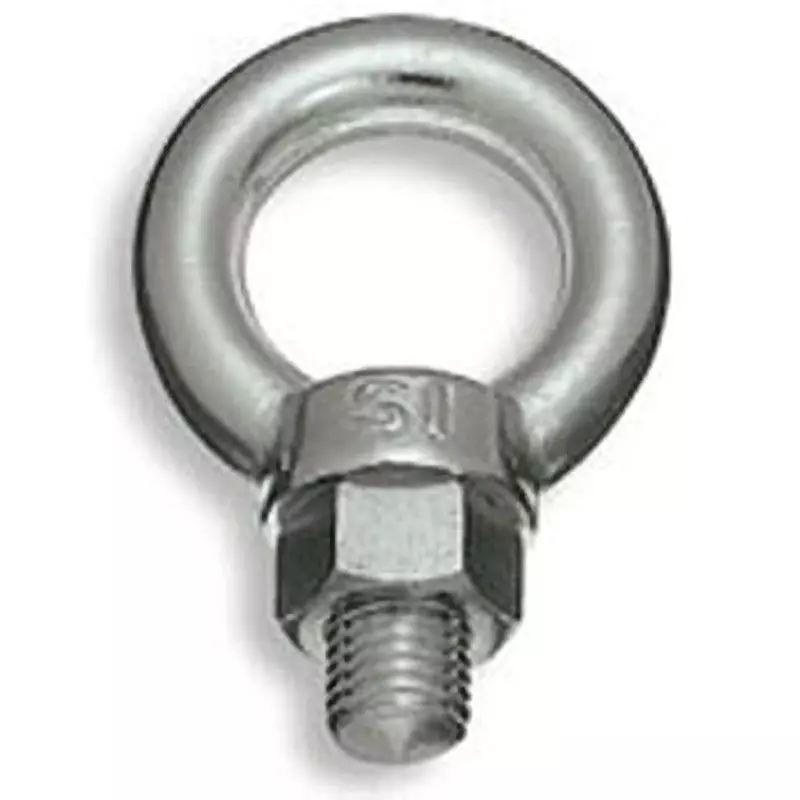

| Type of Product | Eye Bolt |
| Weight | 3.11 Kg |
| Model No | B-130-36 |
| Surface Treatment | Zinc plating chromate treatment (MFZn-C) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Eye Bolt |
Weight |
3.11 Kg |
Model No |
B-130-36 |
Surface Treatment |
Zinc plating chromate treatment (MFZn-C) |
Material |
Rolled Steel For General Structure (SS) |
Country of Origin |
Japan |
Thread Size |
M36 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Dimensions H2 (mm) |
65 |
Dimension d2 (Φmm) |
70 |
Monotaro ID |
61107752 |
Dimension d4 (mm) |
70 |
Dimension L (mm) |
55 |
Dimension d3 (Φmm) |
31.5 |
TAKIGEN Code |
10366 |
Dimensions H1 (mm) |
131.5 |
Dimension d1 (Φmm) |
133 |
Eye Inner Diameter (mm) |
70 |
Applicable Nut Width (mm) |
55 |
Dimension M |
M36 |
Working Load |
22.6 kN |
