| Type of Product | Stainless Steel Eye Bolt |
| Weight | 880 g |
| Model No | B-1130-24 |
| Surface Treatment | Electrolytic treatment |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Stainless Steel Eye Bolt |
Weight |
880 g |
Model No |
B-1130-24 |
Surface Treatment |
Electrolytic treatment |
Material |
Stainless Steel (SUS304) |
Country of Origin |
Japan |
Thread Size |
M24 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |

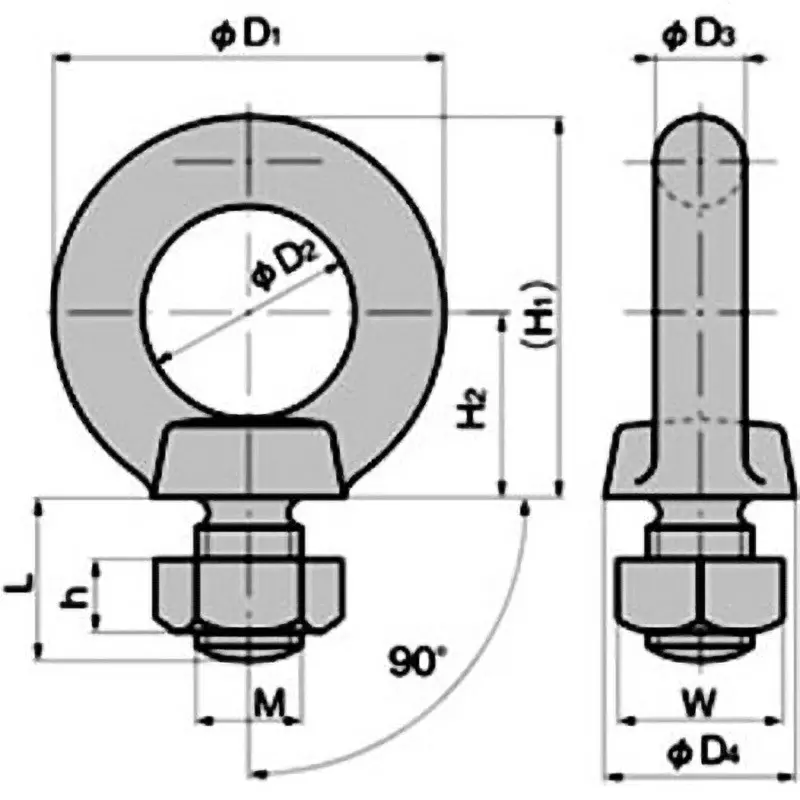

Dimensions H2 (mm) |
45 |
Dimension d2 (Φmm) |
50 |
Monotaro ID |
61112783 |
Dimension d4 (mm) |
45 |
Dimension L (mm) |
38 |
Dimension d3 (Φmm) |
20 |
TAKIGEN Code |
10776 |
Dimensions H1 (mm) |
90 |
Dimension d1 (Φmm) |
90 |
Applicable Nut Width (mm) |
36 |
Dimension M |
M24 |
Working Load |
0.00932 kN |
