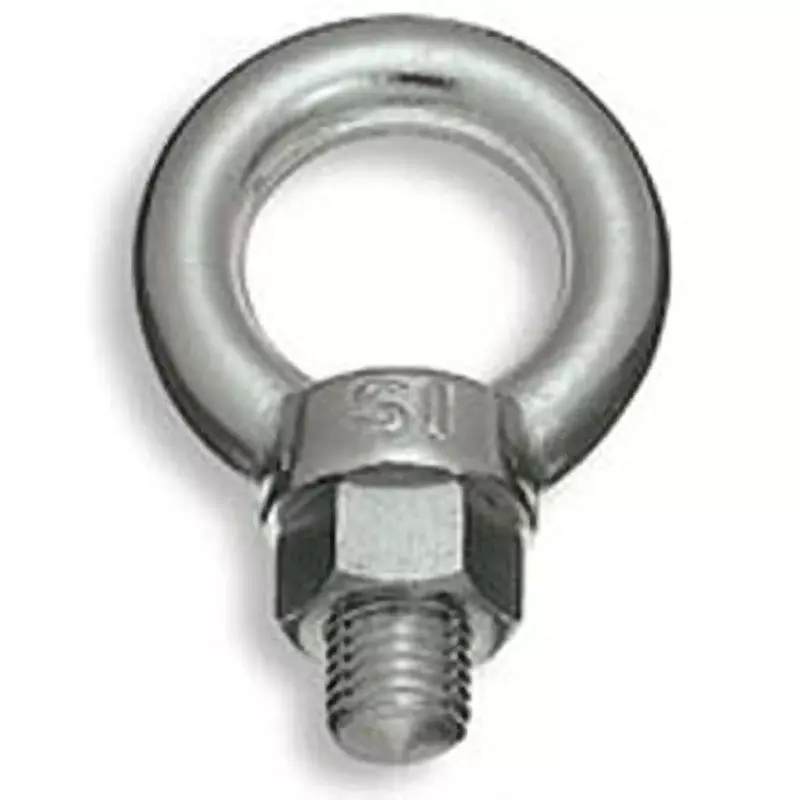

| Type of Product | Eye Bolt |
| Weight | 140 g |
| Model No | B-130-12-35 (trivalent) |
| Surface Treatment | Zinc plating chromate treatment (MFZn-C) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Eye Bolt |
Weight |
140 g |
Model No |
B-130-12-35 (trivalent) |
Surface Treatment |
Zinc plating chromate treatment (MFZn-C) |
Material |
Rolled Steel For General Structure (SS) |
Country of Origin |
Japan |
Thread Size |
M12 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Dimensions H2 (mm) |
26 |
Dimension d2 (Φmm) |
30 |
Monotaro ID |
61107673 |
Dimension d4 (mm) |
25 |
Dimension L (mm) |
35 |
Dimension d3 (Φmm) |
10 |
TAKIGEN Code |
13440 |
Dimensions H1 (mm) |
51 |
Dimension d1 (Φmm) |
50 |
Eye Inner Diameter (mm) |
30 |
Applicable Nut Width (mm) |
19 |
Dimension M |
M12 |
Working Load |
2.16 kN |
