Ships within 25 days
View
View
View
View

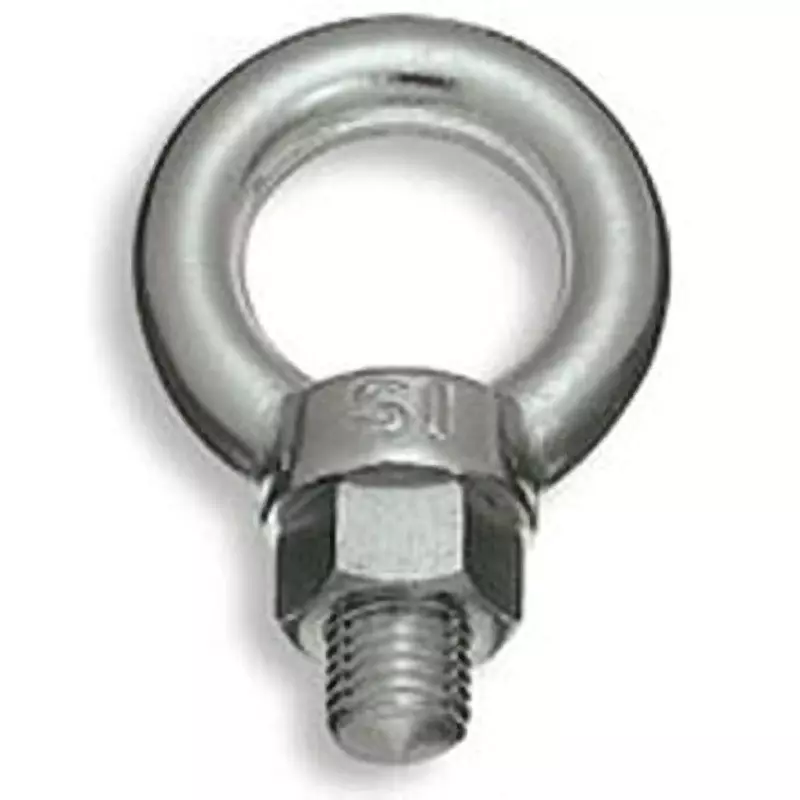

| Type of Product | Eye Bolt |
| Weight | 1.745 Kg |
| Model No | B-130-30 |
| Surface Treatment | Zinc plating chromate treatment (MFZn-C) |
Type of Product |
Eye Bolt |
Weight |
1.745 Kg |
Model No |
B-130-30 |
Surface Treatment |
Zinc plating chromate treatment (MFZn-C) |
Material |
Rolled Steel For General Structure (SS) |
Country of Origin |
Japan |
Thread Size |
M30 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Dimensions H2 (mm) |
55 |
Dimension d2 (Φmm) |
60 |
Monotaro ID |
61107743 |
Dimension d4 (mm) |
60 |
Dimension L (mm) |
45 |
Dimension d3 (Φmm) |
25 |
TAKIGEN Code |
10365 |
Dimensions H1 (mm) |
110 |
Dimension d1 (Φmm) |
110 |
Eye Inner Diameter (mm) |
60 |
Applicable Nut Width (mm) |
46 |
Dimension M |
M30 |
Working Load |
14.7 kN |
Import Country |
Direct Import from Japan |
