| Country of Origin | Japan |
| Thread Size | M30 |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

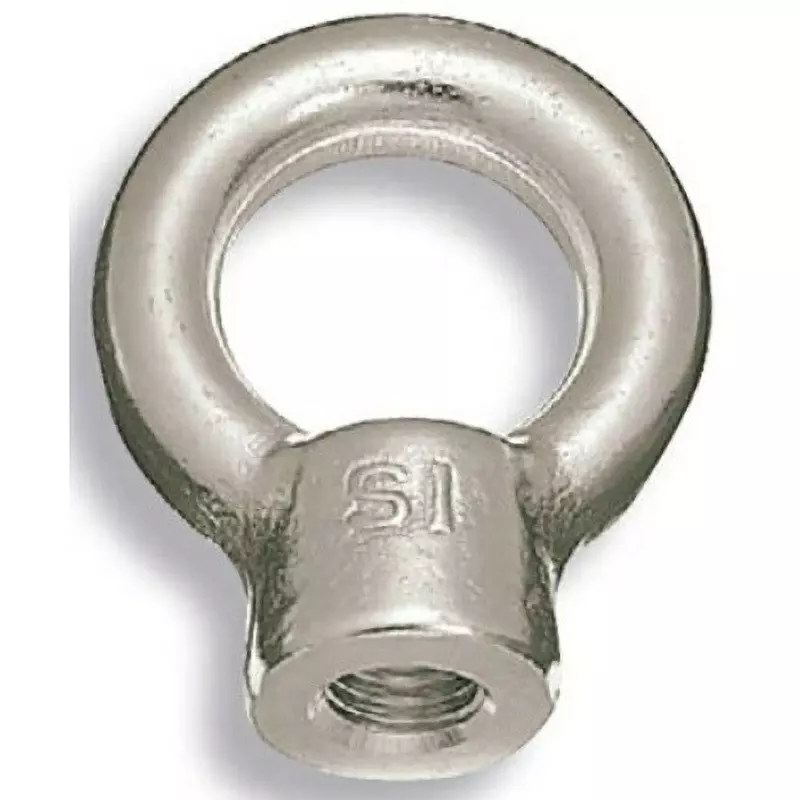

| Type of Product | Stainless Steel Eye Nut |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Thread Size |
M30 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Stainless Steel Eye Nut |
Model No |
B-1132-30 |
Material |
Stainless Steel Sheet (SUS304) |

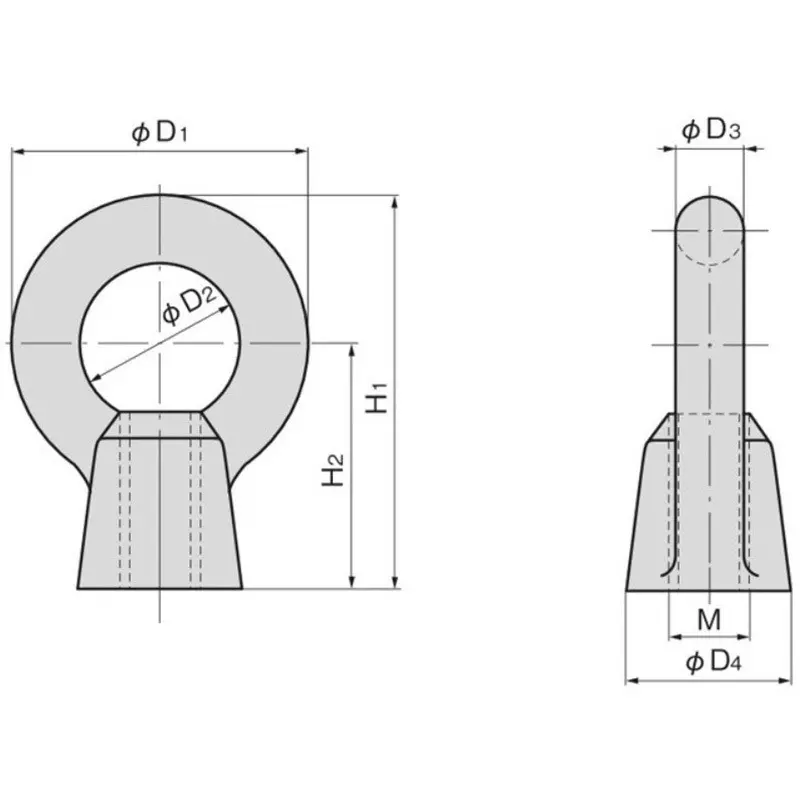

Eye Inner Diameter (mm) |
60 |
Dimensions H2 (mm) |
80 |
Dimension d2 (Φmm) |
60 |
Surface Finish Type |
Electrolytic Polishing |
Monotaro ID |
54340555 |
Dimension d4 (mm) |
60 |
Weight |
1.66 Kg |
Dimension d3 (Φmm) |
25 |
TAKIGEN Code |
12969 |
Dimensions H1 (mm) |
135 |
Working Load |
14.7 kN |
Dimension d1 (Φmm) |
110 |
