| Country of Origin | Japan |
| Thread Size | M12 |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Stainless Steel Eye Nut |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Thread Size |
M12 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Stainless Steel Eye Nut |
Model No |
B-1132-12 |
Material |
Stainless Steel Sheet (SUS304) |

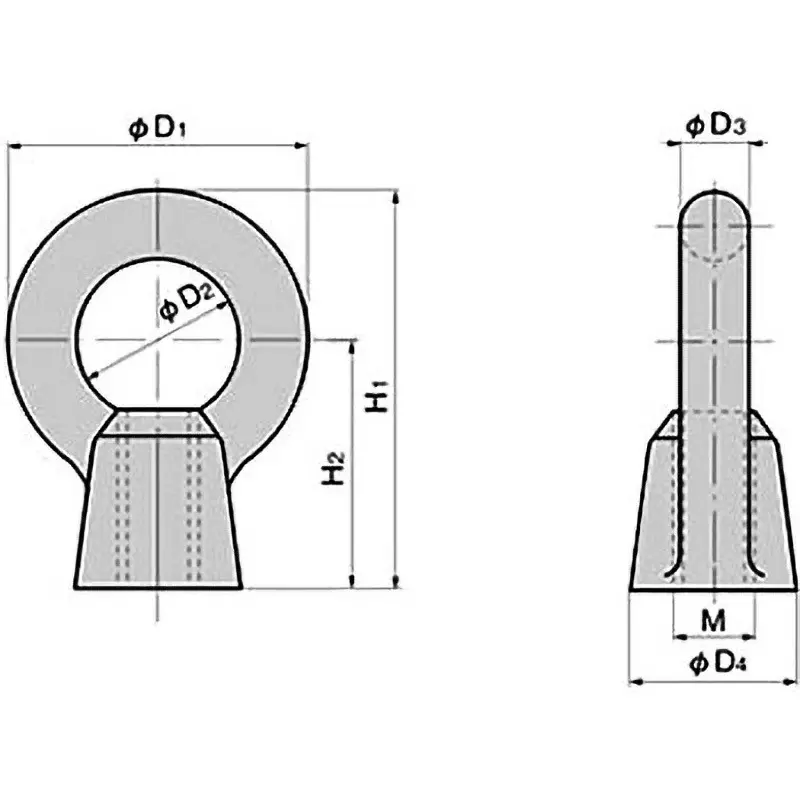

Eye Inner Diameter (mm) |
30 |
Dimensions H2 (mm) |
36 |
Dimension d2 (Φmm) |
30 |
Surface Finish Type |
Electrolytic Polishing |
Monotaro ID |
62806162 |
Dimension d4 (mm) |
25 |
Weight |
120 g |
Dimension d3 (Φmm) |
10 |
TAKIGEN Code |
10787 |
Dimensions H1 (mm) |
61 |
Working Load |
2.16 kN |
Dimension d1 (Φmm) |
50 |
Dimension M |
12 |
