| Country of Origin | Japan |
| Thread Size | M24 |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Stainless Steel Eye Nut |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Thread Size |
M24 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Stainless Steel Eye Nut |
Model No |
B-1132-24 |
Material |
Stainless Steel Sheet (SUS304) |
Eye Inner Diameter (mm) |
50 |

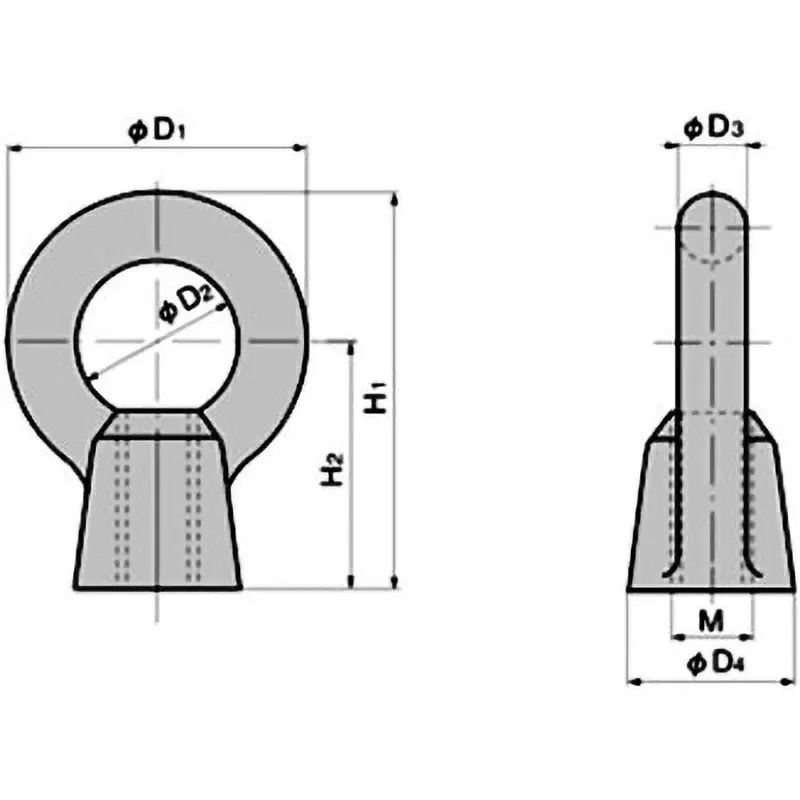

Dimensions H2 (mm) |
66 |
Dimension d2 (Φmm) |
50 |
Surface Finish Type |
Electrolytic Polishing |
Monotaro ID |
61112896 |
Dimension d4 (mm) |
45 |
Weight |
835 g |
Dimension d3 (Φmm) |
20 |
TAKIGEN Code |
10791 |
Dimensions H1 (mm) |
111 |
Working Load |
9.32 kN |
Dimension d1 (Φmm) |
90 |
Dimension M |
24 |
