| Thread Type | Rc |

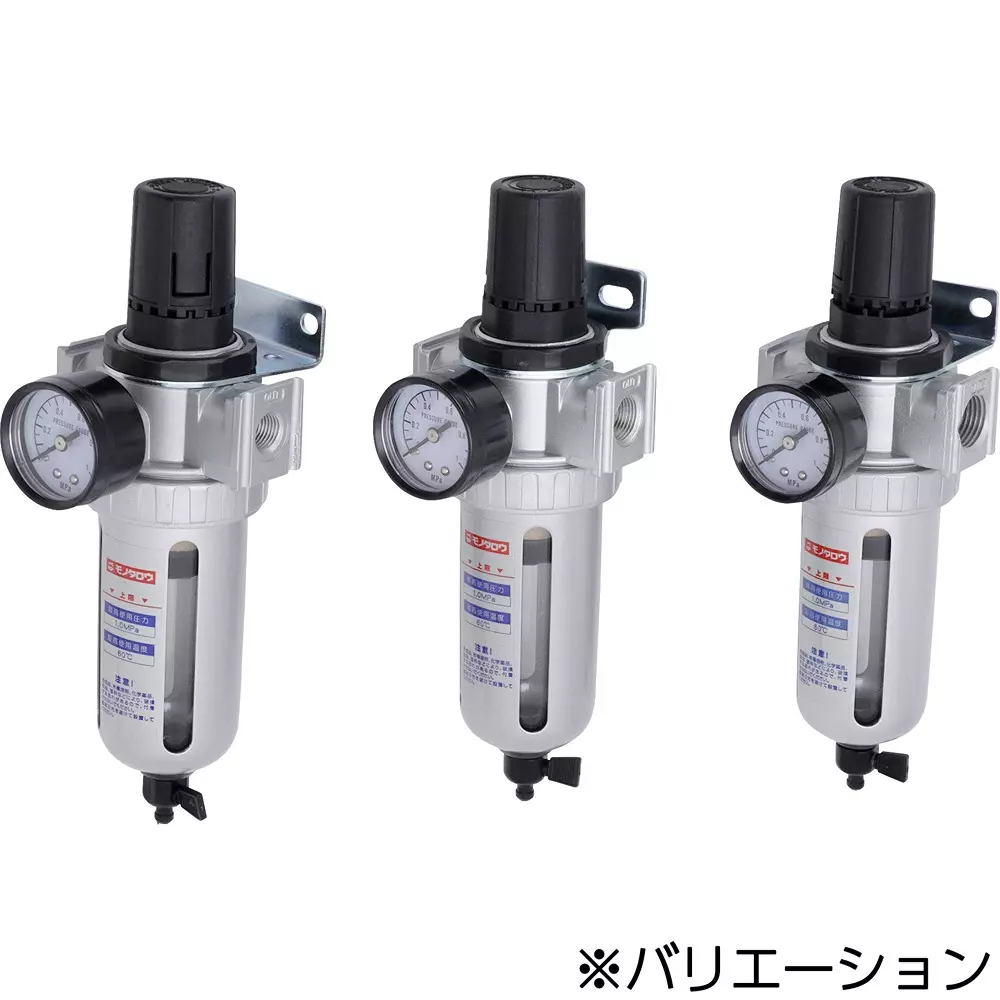

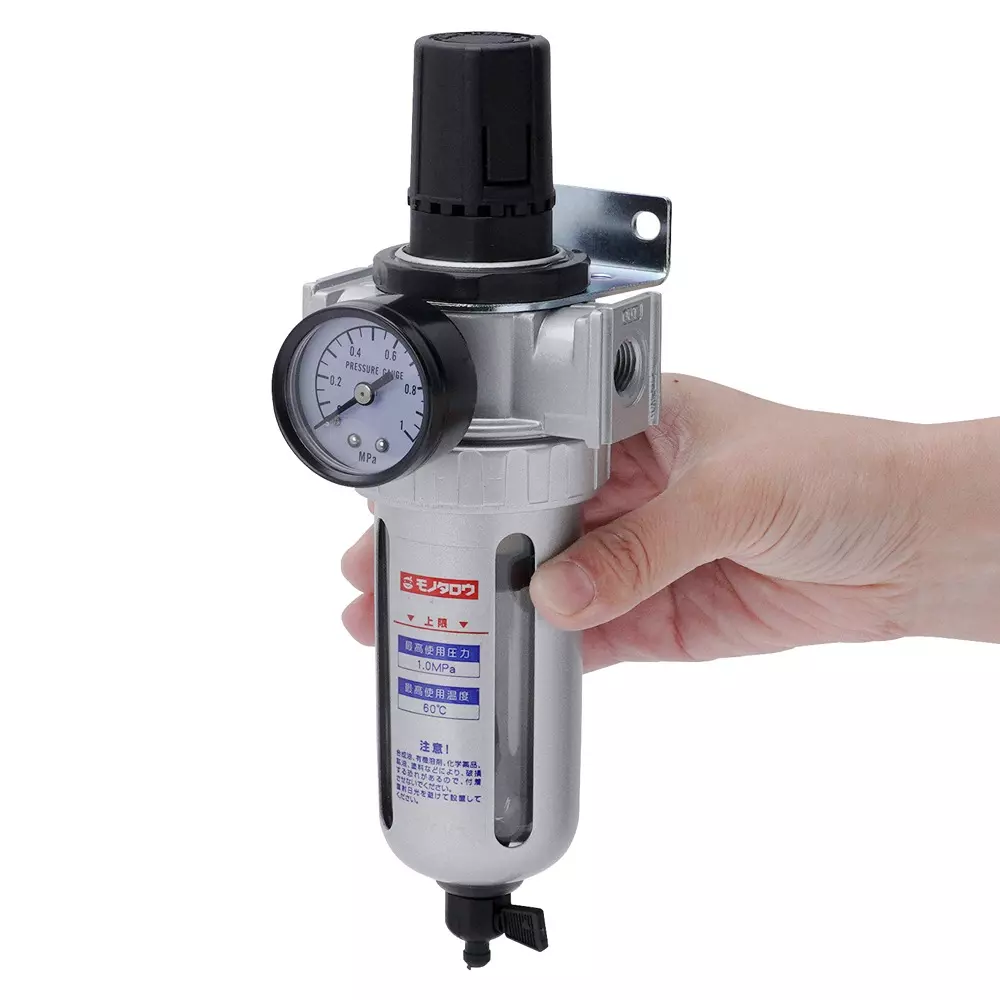

| Type of Product | Filter Regulator Semi-Auto Drain |
| Model No | FR-02 |
| Material | Aluminum alloy |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Thread Type |
Rc |
Type of Product |
Filter Regulator Semi-Auto Drain |
Model No |
FR-02 |
Material |
Aluminum alloy |
Filtration |
5 μm |
Bowl material |
Polycarbonate |
Country of Origin |
Japan |
Operating Temperature Range |
5 - 60°C |
Pipe Connection Diameter |
Rc1/4 |
Suitable Fluid |
Compressed air |
Monotaro ID |
34891604 |
Set Pressure Unit |
MPa |
Type of Sign |
With bracket |
Maximum Operating Pressure (MPa) |
1 |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Import Country |
Direct Import from Japan |
Pressure Gauge Connection Size |
Rc1/8 |
Drain Port Size (Rc) |
46030 |
Auto Drain Specification |
Semi-auto drain |
Maximum Flow Rate (LPM) |
1750 |
LID Material |
Polyacetal |
Assured Pressure Resistance (MPa) |
1.2 |
Filter Drain Storage Volume (mL) |
80 |
Moisture Removal Rate (%) |
82 |
Minimum Working Pressure (MPa) |
0.2 (entrance side) |
