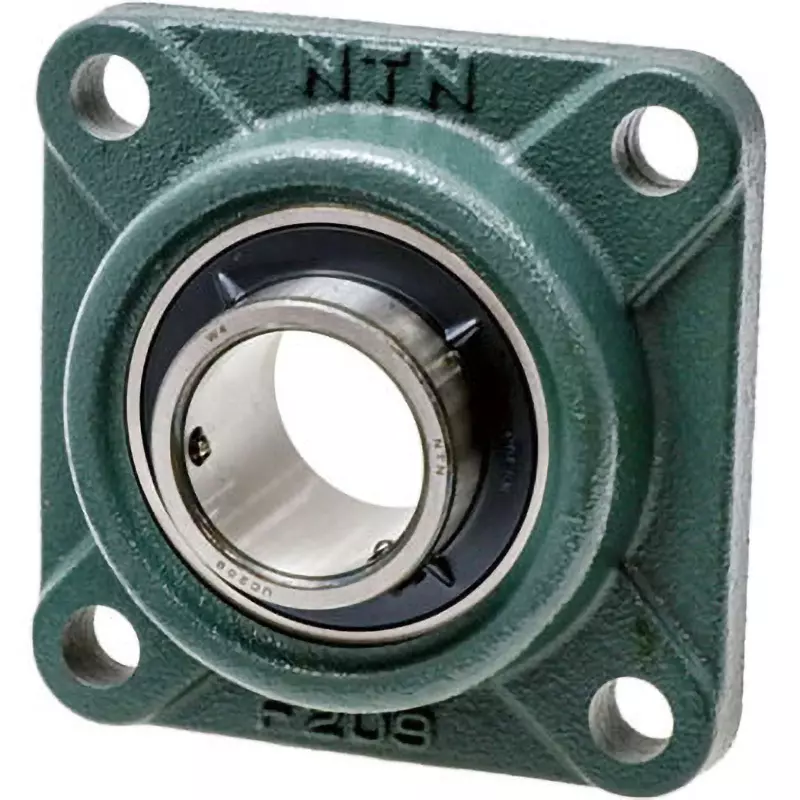

| Type of Product | Square Flange Unit Without Oil Supply |
| Model No | UCF209 |
| Monotaro ID | 371192 |
| Shank Diameter (Φmm) | 45 |
Type of Product |
Square Flange Unit Without Oil Supply |
Model No |
UCF209 |
Monotaro ID |
371192 |
Shank Diameter (Φmm) |
45 |
Cover |
Without cover |

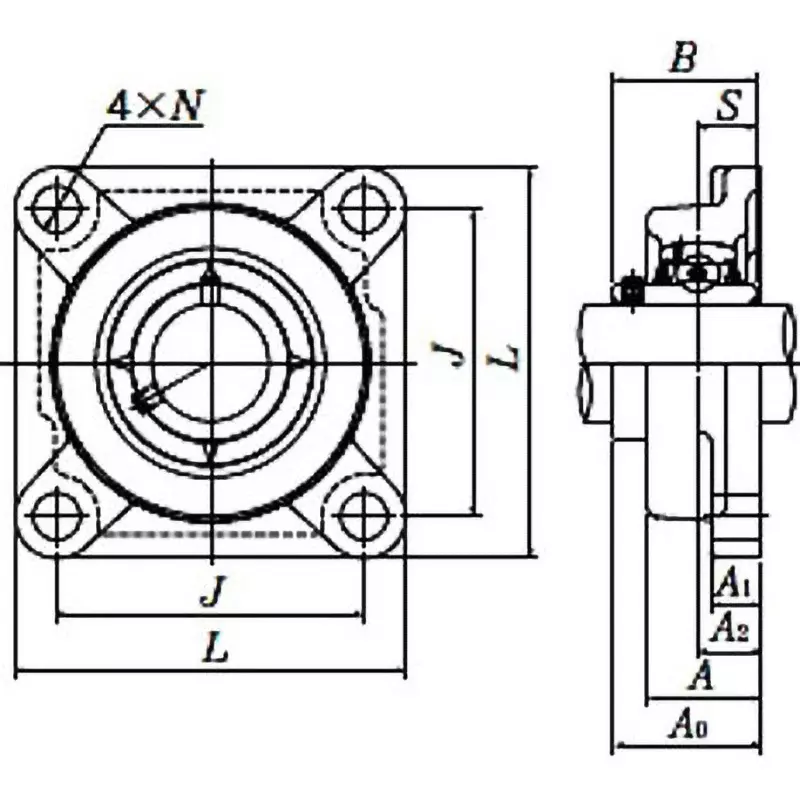

Dimension A0 (mm) |
52.2 |
Shaft Hole Type |
Cylindrical hole type |
Shape |
Square flange unit |
Basic Static Load Rating (kN) |
20.399999999999999 |
Basic Dynamic Load Rating (kN) |
32.5 |
Grease Nipple |
No grease nipple |
Load Rank |
For light loads |
Nominal Size of Mounting Bolt |
M14 |
Dimensions A (mm) |
38 |
Dimensions B (mm) |
49.2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
NTN Corporation |
Dimension n (mm) |
16 |
Dimension A1 |
16 mm |
Dimension J (mm) |
105 |
Dimension S |
19 mm |
Dimension L (mm) |
137 |
Dimension A2 (mm) |
22 |
