Ships within 19 days
Model No
No. of Pole
View
View
View
View
| Cell Spacing (mm) | Polarity guide: 22.86 |
| Monotaro ID | 8592762 |
| Suitable Wire | For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |

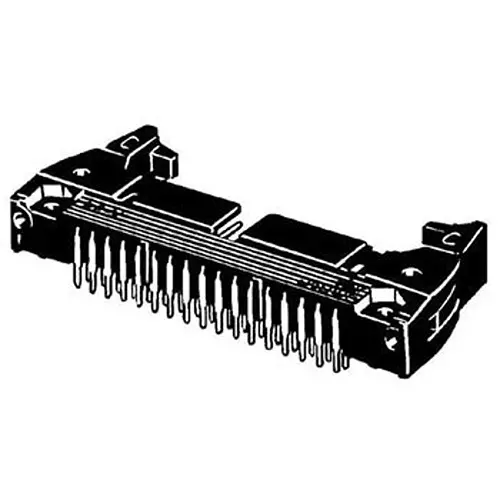

| Shape | MIL type plug (with long hook) |
Cell Spacing (mm) |
Polarity guide: 22.86 |
Monotaro ID |
8592762 |
Suitable Wire |
For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
Shape |
MIL type plug (with long hook) |
Type of Product |
Flat Cable Connector |
No. of Pole |
34 Pole |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Total Insertion Force |
34x1.96N or less |
Withstand Voltage |
500 VAC, 1 min (leakage current 1 mA or less) |
Rated Voltage (V) |
AC300 |
Model No |
XG4A-3434 |
Type |
MIL-Type Plug with Long Lock |
Number of polar slots |
1 |
Standard |
MIL standard (MIL-C-83503) / UL standard (File No. E103202) certified / RoHS compliant |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
Dip L-Shaped Terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |

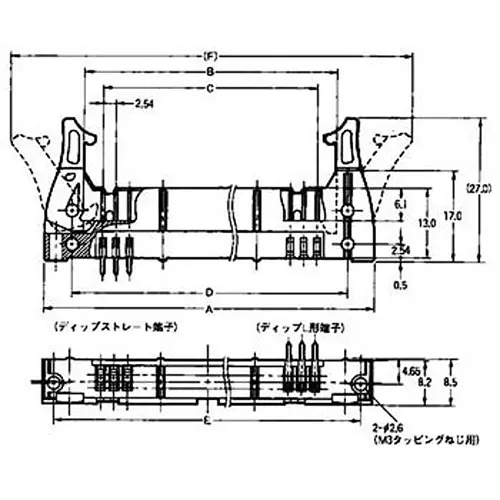

Dimension A (Φmm) |
φ62.5 mm |
Dimension B (Φmm) |
φ48 mm |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Dimension E (Φmm) |
φ58.4 mm |
Manufacturer Part Number |
XG4A-3434 |
Dimension C |
40.64 mm |
Dimension d |
52.3 mm |
Dimension F (Φmm) |
φ76.9 mm |
