| Polarity Guide | 2 |
| Cell Spacing (mm) | 1.27 |
| Monotaro ID | 39103276 |
| Suitable Wire | 1.27 mm pitch flat cable AWG28 (7 strands) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Polarity Guide |
2 |
Cell Spacing (mm) |
1.27 |
Monotaro ID |
39103276 |
Suitable Wire |
1.27 mm pitch flat cable AWG28 (7 strands) |
Shape |
MIL type socket |
Type of Product |

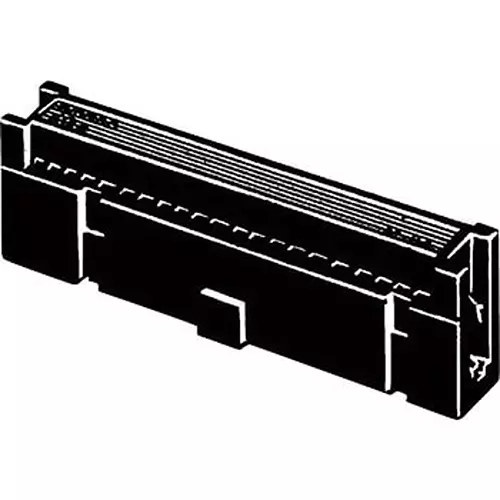

Flat Cable Connector |
Applicable Standard |
MIL standard (MIL-C-83503) / UL standard (File No. E103202) certified / RoHS compliant |
No. of Pole |
60 |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Total Insertion Force |
Number of polesx1.96N or less |
Withstand Voltage |
500 VAC, 1 min (leakage current 1 mA or less) |
Cover Material |
Glass-filled PBT resin (UL94V-0) / Black |
Rated Voltage (V) |
250 |
Rated Current (A) |
1 |
Model No |
XG4M-6031 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-55 to +105℃ (no freezing at low temperatures) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |

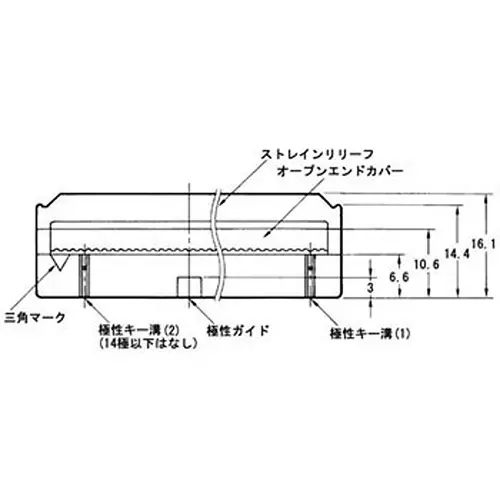

Dimension A (Φmm) |
80.8 |
Dimension B (Φmm) |
73.66 |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Terminal Connection Type |
Crimping |
Contact Connection Part Material |
Phosphor bronze |
Contact Terminal Pressure Connection Part Material |
Phosphor bronze |
