| Polarity Guide | 1 |
| Monotaro ID | 8593541 |
| Suitable Wire | For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
| Shape | Board / Board socket |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Polarity Guide |
1 |
Monotaro ID |
8593541 |
Suitable Wire |
For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
Shape |
Board / Board socket |

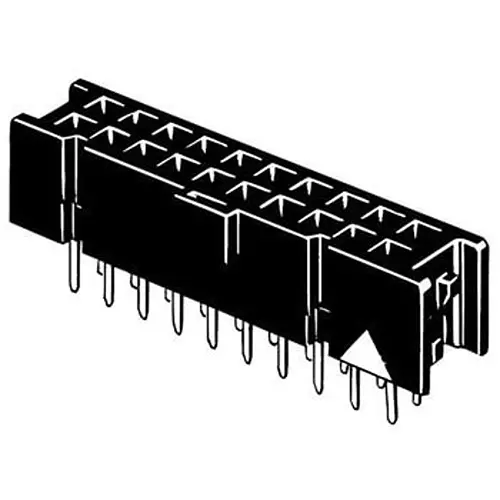

Type of Product |
Flat Cable Connector |
No. of Pole |
30-Pole |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Total Insertion Force |
30x1.96N or less |
Withstand Voltage |
500 VAC, 1 min (leakage current 1 mA or less) |
Rated Voltage (V) |
AC300 |
Standard |
RoHS directive, ML standard (MIL-C-83503), UL standard (file No.E103202) |
Processing (Contact Terminal Pressure Connection Part) |
Nickel base + tin plating (2.0 μm) |
Processing (Contact Connection Part) |
Nickel base + gold plating (0.15 μm) |
Material (Contact Terminal Pressure Connection Part) |
Phosphor bronze |
Material (Contact Connection Part) |
Phosphor bronze |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP straight terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing at low temperatures) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |

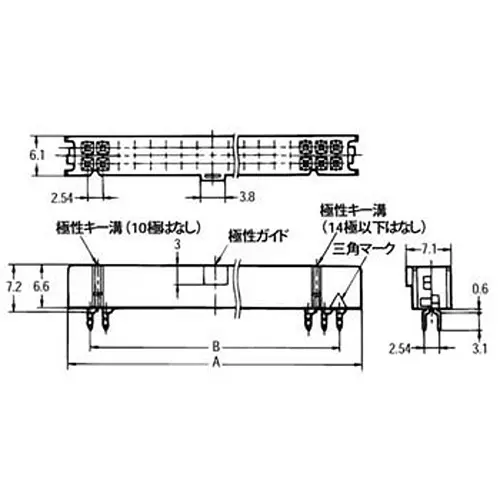

Dimension A (Φmm) |
φ42.7 mm |
Dimension B (Φmm) |
φ35.56 mm |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Manufacturer Part Number |
XG4H-3031 |
Insertion / Removal Durability (Times) |
50 |
