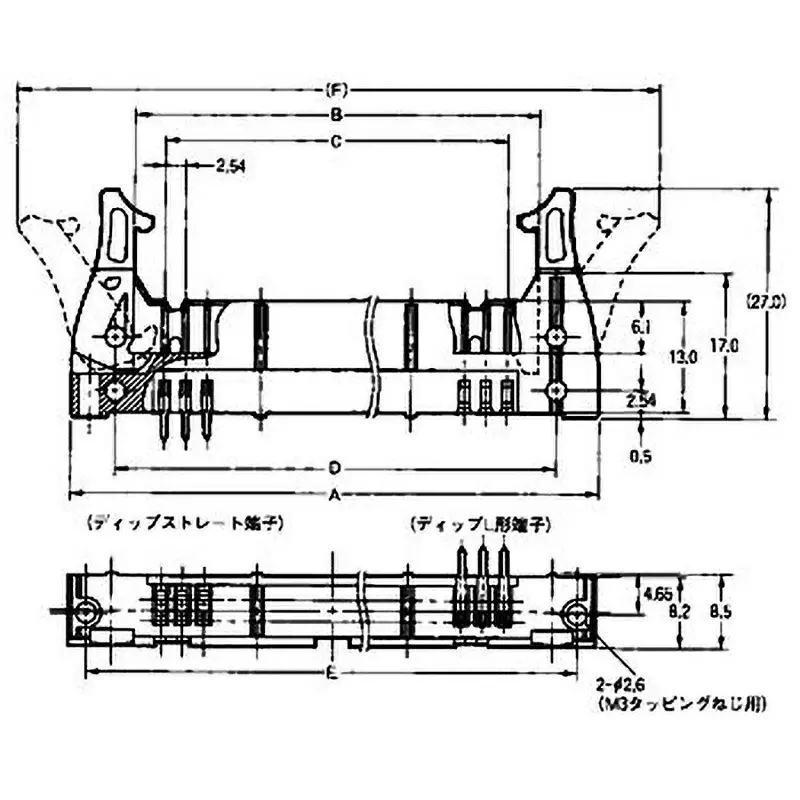

| Dimensions A (mm) | 37.1 |
| Cell Spacing (mm) | Polarity guide: 22.86 |
| Monotaro ID | 2503076 |
| Shape | MIL type plug (with long hook) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Dimensions A (mm) |
37.1 |
Cell Spacing (mm) |
Polarity guide: 22.86 |
Monotaro ID |
2503076 |
Shape |
MIL type plug (with long hook) |
Type of Product |
Flat Cable Connector |
No. of Pole |
14 |
Withstand Voltage |
500 V AC, 1 min (leakage current 1 mA or less) |
Rated Voltage (V) |
AC 300 V |
Model No |
XG4A-1431 |
Standard |
MIL standard (MIL-C-83503) UL standard (File No.E103202) certified RoHS compliant |
Dimensions F (mm) |
51.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Shape |
DIP straight terminal |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
10 Pcs |
