Model No
No. of Pole
View
View
View
View
| Cell Spacing (mm) | Polarity guide: 22.86 |
| Monotaro ID | 8593112 |
| Suitable Wire | For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
| Shape | Long lock type |
Cell Spacing (mm) |
Polarity guide: 22.86 |
Monotaro ID |
8593112 |
Suitable Wire |
For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
Shape |
Long lock type |
Type of Product |

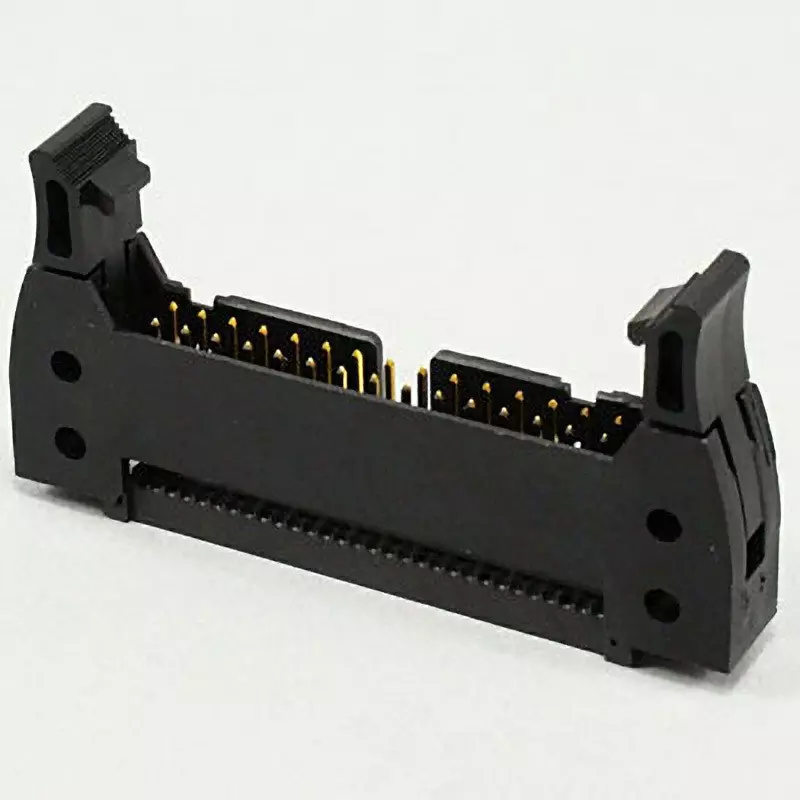

Flat Cable Connector |
Applicable Standard |
MIL standard (MIL-C-83503) UL standard (file No.E103202) certified RoHS compliant |
No. of Pole |
30 Pole |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Withstand Voltage |
500 VAC, 1 min (leakage current 1 mA or less) |
Cover Material |
Polyamide resin (UL94V-0) / Black |
Rated Voltage (V) |
AC300 |
Ambient Humidity (% RH) |
At the time of use and storage / 20-85 |
Rated Current (A) |
1 |
Model No |
XG4E-3031 |
Type |
Crimp Type Plug |
Storage Temperature |
-35 to +80℃ |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |
Dimension A (Φmm) |
φ57.4 mm |
Dimension B (Φmm) |
φ42.9 mm |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |
Dimension E (Φmm) |
φ53.3 mm |
Manufacturer Part Number |
XG4E-3031 |
Dimension C |
35.56 mm |
Dimension d |
47.2 mm |
Dimension F (Φmm) |
φ71.8 mm |
