| Polarity Guide | 1 |
| Cell Spacing (mm) | Polarity guide: 22.86 |
| Monotaro ID | 8592446 |
| Suitable Wire | For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Polarity Guide |
1 |
Cell Spacing (mm) |
Polarity guide: 22.86 |
Monotaro ID |
8592446 |
Suitable Wire |
For pressure welding: 1.27 mm pitch flat cable AWG28 (7 stranded wires), UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |

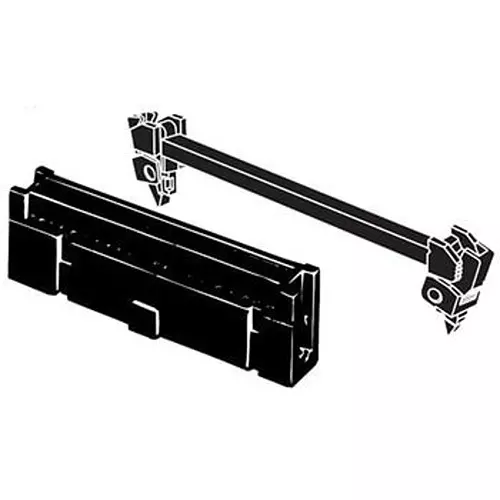

Shape |
MIL type socket strain relief (with lock) |
Type of Product |
Flat Cable Connector |
No. of Pole |
50-Pole |
Housing Material |
Glass-filled PBT resin (UL94V-0) / Black |
Total Insertion Force |
50x1.96N or less |
Withstand Voltage |
500 VAC, 1 min (leakage current 1 mA or less) |
Cover Material |
Glass-filled PBT resin (UL94V-0) / Black |
Rated Voltage (V) |
AC250 |
Rated Current (A) |
1 |
Standard |
RoHS directive, ML standard (MIL-C-83503), UL standard (file No.E103202) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Operation Ambient Temperature (°C) |
-55 to +105 (no freezing in the bass) |
Contact Resistance (ohm) |
20 or less (20mV or less, 100mA or less) |

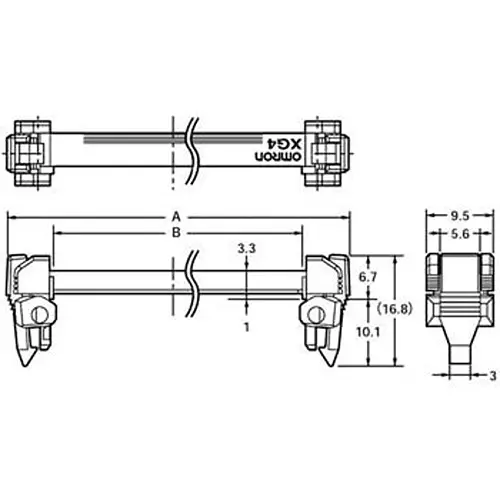

Dimension A (Φmm) |
φ77.6 mm |
Dimension B (Φmm) |
φ64 mm |
Insulation Resistance (MOhm) |
10³ or more (at 500 VDC) |

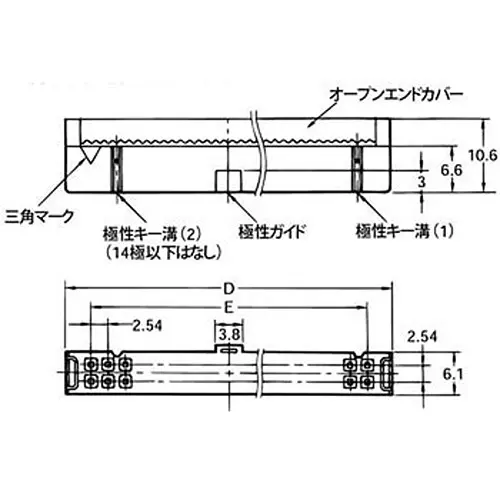

Dimension E (Φmm) |
φ60.96 mm |
Manufacturer Part Number |
XG4M-5030-U |

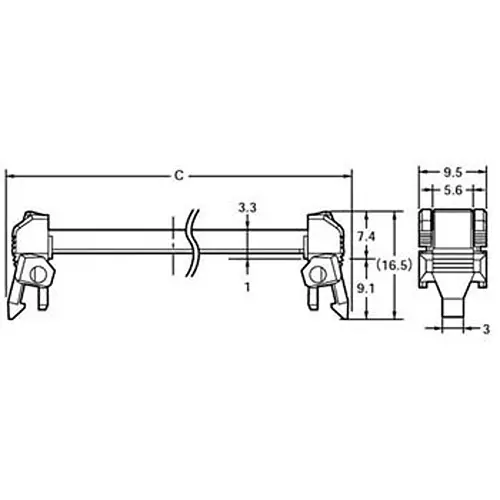

Dimension C |
77 mm |
Dimension d |
68.1 mm |
