| Monotaro ID | 39103023 |
| Suitable Wire | 1.27 mm pitch flat cable AWG28 (7 strands) UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
| Type of Product | Flat Cable Connector |
| No. of Pole | 40 |
Monotaro ID |
39103023 |
Suitable Wire |
1.27 mm pitch flat cable AWG28 (7 strands) UL2651 (standard cable), UL20012 (sudare cable), UL20028 (color code cable) |
Type of Product |
Flat Cable Connector |
No. of Pole |
40 |
Cover Material |
Glass-filled PBT resin (UL94V-0) / Black |
Rated Voltage (V) |
AC250 |
Contact Material |
(Pressure contact area) Copper alloy/nickel base, tin plating (2.0 μm) (Terminal area) Copper alloy/nickel base, gold flash plating |
Rated Current (A) |
1 |
Model No |
XG2A-4001 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-55 to +85℃ (no freezing at low temperatures) |
Withstand voltage (V / min) |
AC500 (leakage current 1mA or less) |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Pack of |
1 Pcs |
Contact Resistance (ohm) |
15 or less (20mV or less, 100mA or less) |

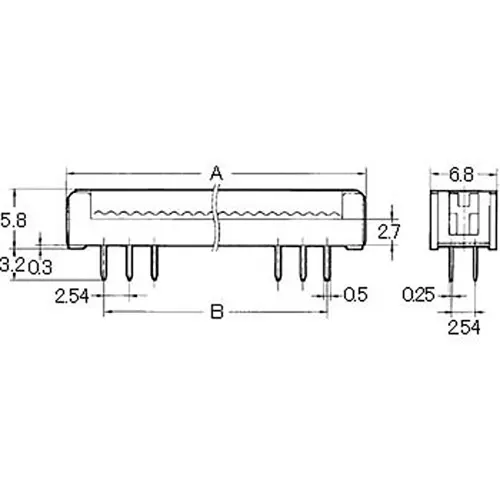

Dimension A (Φmm) |
56 |
Dimension B (Φmm) |
48.26 |
Insulation Resistance (MOhm) |
10³ mohm or more (at 500 V DC) |
Plate Material |
Glass-filled PBT resin (UL94V-0) / Black |
Part No |
64-3391-65 |
