Ships within 25 days
View
View
View
View
| Monotaro ID | 50595915 |

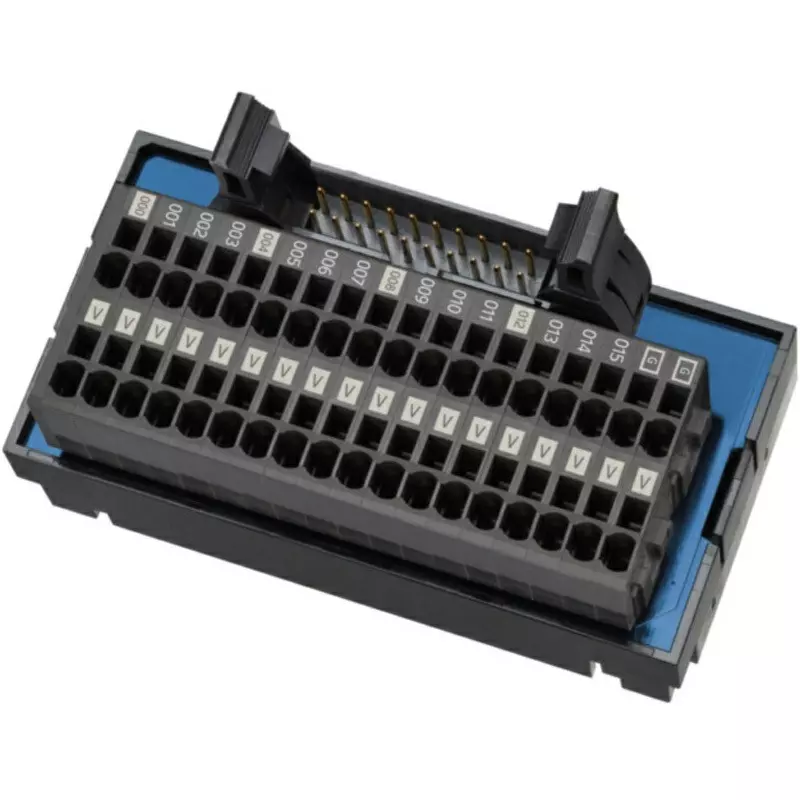

| Type of Product | Connector Terminal Block Conversion Unit |
| No. of Pole | 20 |
| Insulation Resistance | 100 mΩ or more (at 500 VDC) |
Monotaro ID |
50595915 |
Type of Product |
Connector Terminal Block Conversion Unit |
No. of Pole |
20 |
Insulation Resistance |
100 mΩ or more (at 500 VDC) |
Rated Voltage (V) |
DC30 V |
Rated Current (A) |
I/O Unit Signal Line: 0.5 A, I/O Unit Common Line: 2 A, Power Supply Line: 4 A |
Model No |
XW2K-20G-O16B-OUT |
Type |
Small Connector Terminal Block |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Operating Temperature Range |
-20~75 (No Condensation or Freezing) |
Compatible Models |
Omron PLC |
Color |
Board: Blue |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Connection Type |
Push-in |
Outer Dimensions (mm) |
Vertical Installation: 39x75x40.8 mm, Horizontal Installation: 75x39x40.8 mm |
Compatible Cable |
Stranded Wire, Solid Wire: 0.08~1.5 mm² (AWG28~16), Ferrule Terminal: with Insulating Sleeve 0.14~0.5 mm² (AWG26~20), without Insulating Sleeve 0.75~1.5 mm² (AWG18~16) |
