| Monotaro ID | 50596019 |

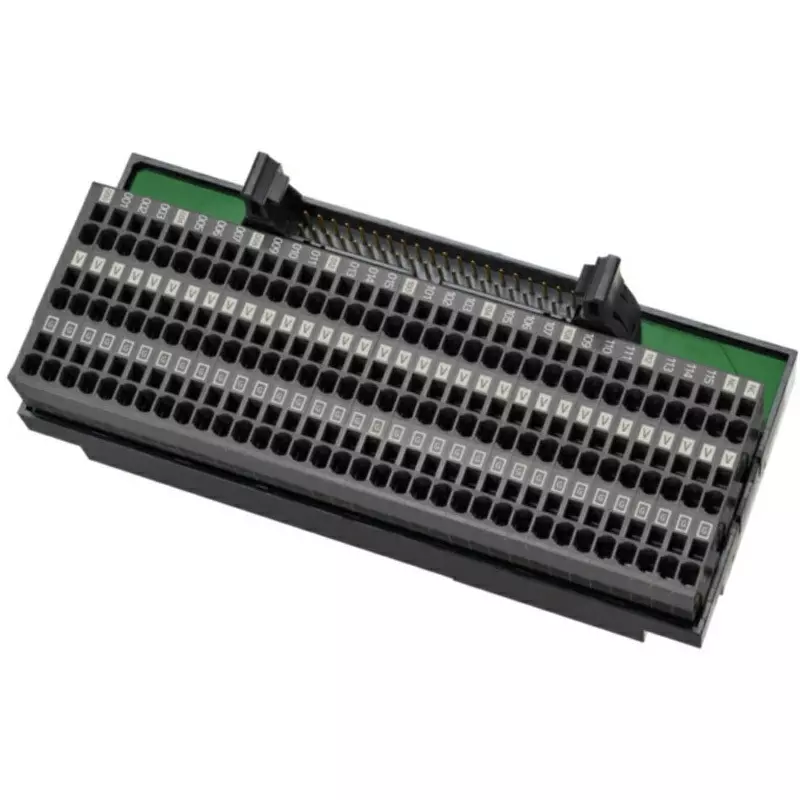

| Type of Product | Connector Terminal Block Conversion Unit |
| No. of Pole | 40 |
| Insulation Resistance | 100 mΩ or more (at 500 VDC) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Monotaro ID |
50596019 |
Type of Product |
Connector Terminal Block Conversion Unit |
No. of Pole |
40 |
Insulation Resistance |
100 mΩ or more (at 500 VDC) |
Suitable For |
Shape XG4A |
Rated Voltage (V) |
DC30 V |
Rated Current (A) |
I/O Unit Signal Line: 0.5 A, I/O Unit Common Line: 4 A, Power Supply Line: 7 A |
Model No |
XW2K-40G-O32A-IN |
Type |
Small Connector Terminal Block |
Country of Origin |
Japan |
Operating Temperature Range |
-20~75 (No Condensation or Freezing) |
Compatible Models |
OMRON, Yokogawa Electric, Hitachi Industrial Equipment Systems PLC |
Color |
Substrate: Green |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Connection Type |
Push-in |
Outer Dimensions (mm) |
Vertical Installation: 52.7x124x40.8 mm, Horizontal Installation: 124x52.7x40.8 mm |
Compatible Cable |
0.08~1.5 mm² |
