| Monotaro ID | 50596098 |

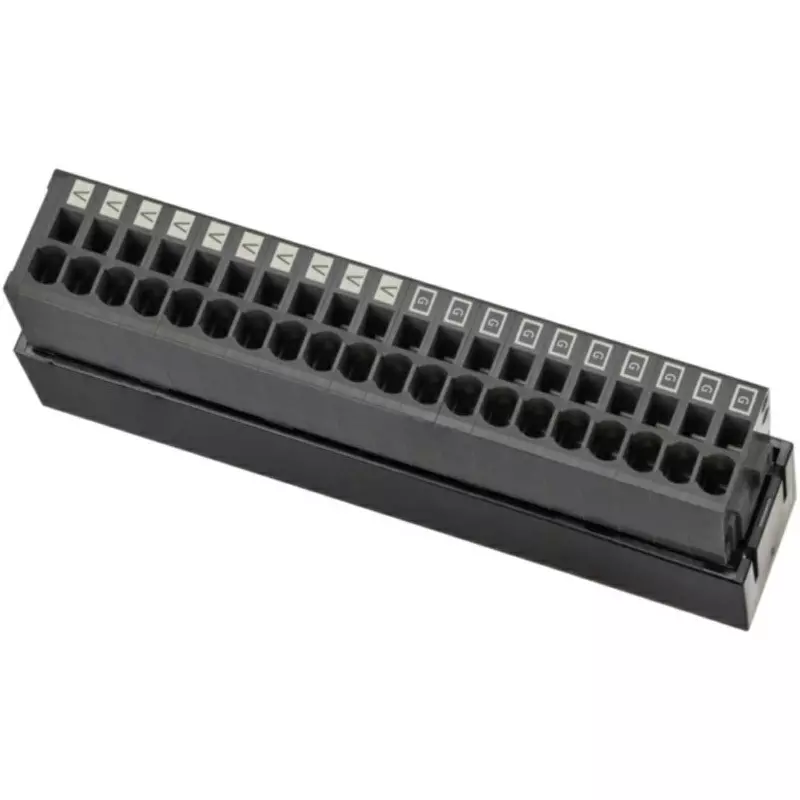

| Type of Product | Connector Terminal Block Conversion Unit |
| No. of Pole | 20 |
| Insulation Resistance | 100 mΩ or more (at 500 VDC) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Monotaro ID |
50596098 |
Type of Product |
Connector Terminal Block Conversion Unit |
No. of Pole |
20 |
Insulation Resistance |
100 mΩ or more (at 500 VDC) |
Rated Voltage (V) |
AC/DC250 V |
Rated Current (A) |
10 A |
Model No |
XW2K-COM20 |
Type |
Common Terminal Block |
Country of Origin |
Japan |
Operating Temperature Range |
-20~75 (No Condensation or Freezing) |
Color |
Substrate: Black |
Name of Manufacturer/Packer/Importer |
Omron Corporation |
Connection Type |
Push-in |
Outer Dimensions (mm) |
14.8x75x29.4 mm |
Compatible Cable |
Stranded Wire, Solid Wire: 0.08~1.5 mm² (AWG28~16), Ferrule Terminal: with Insulating Sleeve 0.14~0.5 mm² (AWG26~20), without Insulating Sleeve 0.75~1.5 mm² (AWG18~16) |
