Alpha Wire Control Cable 4 Core 0.56 mm² Area Black 30 m Length, 25464 BK005

Share

Ships within 15 days

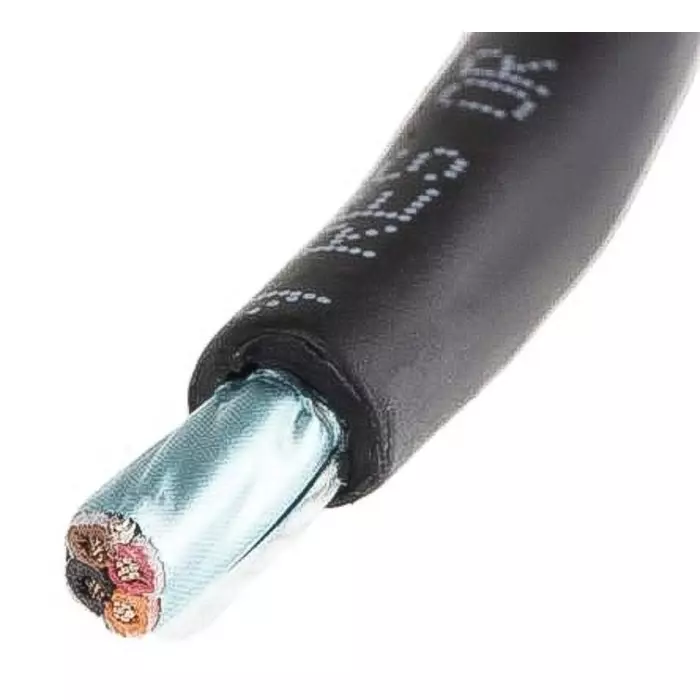

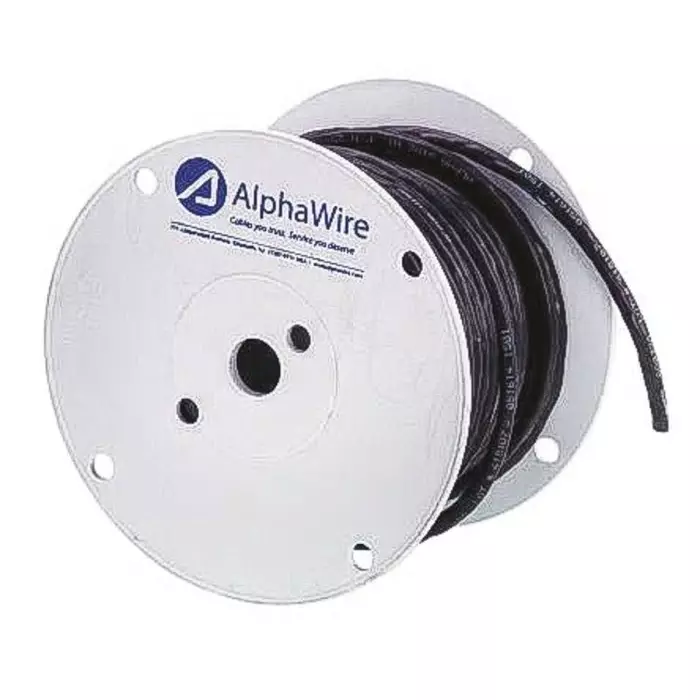

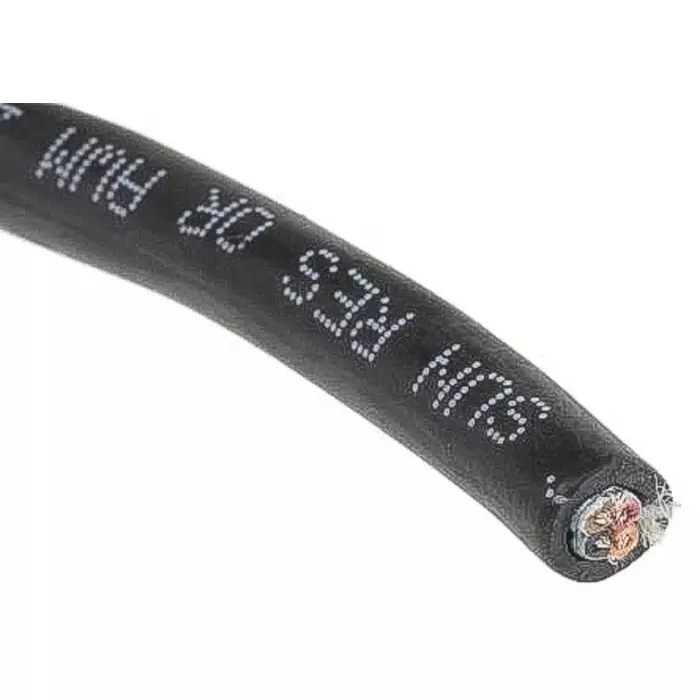

Alpha Wire Control Cable 4 Core 0.56 mm² Area Black 30 m Length, 25464 BK005

Alpha Wire Control Cable 4 Core 0.56 mm² Area Black 30 m Length, 25464 BK005

Alpha Wire Control Cable 4 Core 0.56 mm² Area Black 30 m Length, 25464 BK005

Alpha Wire Control Cable 4 Core 0.56 mm² Area Black 30 m Length, 25464 BK005

Alpha Wire Control Cable 4 Core 0.56 mm² Area Black 30 m Length, 25464 BK005

Alpha Wire Control Cable 4 Core 0.56 mm² Area Black 30 m Length, 25464 BK005

Visit the Alpha Wire Store

EMI starts at ₹1782/month. No Cost EMI available.

Available offers

Flat ₹200 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹100 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹500 off on Order above ₹15000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Features

Insulation Material	PVC
Conductor Material	Tinned Copper
No of Core	4
Series	XTRA-GUARD 2

More Alpha Wire Flexible Single & Multicore Cables products More Flexible Single & Multicore Cables products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

Insulation Material	PVC
Conductor Material	Tinned Copper
No of Core	4
Series	XTRA-GUARD 2
Color	Black
Nominal Area	0.56 mm²
Type of Product	Control Cable
Model No	25464 BK005
Cable Length	30 m
Voltage Rating	300 V
Standard Met	CE, CSA, UL
Outer Diameter	6.15 mm
Country of Origin	United States
Wire Gauge	20 AWG
Maximum Operating Temperature	+90°C
Minimum Operating Temperature	-30°C
Conductor Resistance	33.46 Ω/Km
Screen Type	Foil
Sheath Material	PE
Screened or Unscreened	Screened
Name of Manufacturer/Packer/Importer	RS Components & Controls (I) Ltd
Core Strands	7/0.32 mm
Wire	Drain Wire
Minimum Bend Radius	10xDiameter
