| Insulation Material | PTFE |
| Conductor Material | Silver Plated Copper |
| No of Core | 1 Core |
| No. of Strands | 7 |
Insulation Material |
PTFE |
Conductor Material |
Silver Plated Copper |
No of Core |
1 Core |
No. of Strands |
7 |
Color |
White |
Nominal Area |
0.08 Sq.mm |
Type of Product |

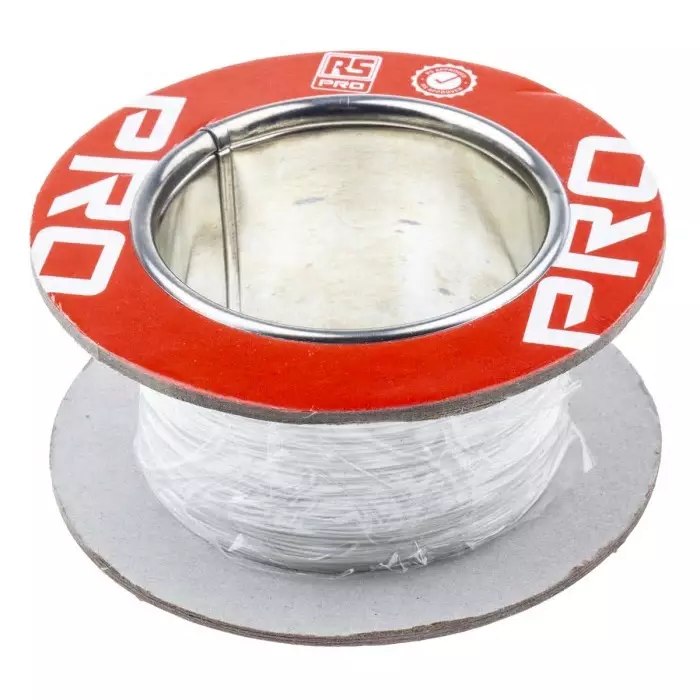

Hook Up Wire |
Model No |
8417147 |
Cable Length |
100 m |
Voltage Rating |
300 V |
Standard Met |
BS 3G 210:1996 |
Outer Diameter |
0.71 mm |
Country of Origin |
China |
Wall Thickness |
0.15 mm |
Wire Gauge |
28 AWG |
Maximum Operating Temperature |
200°C |
Minimum Operating Temperature |
-75°C |
Strands |
7/0.12 mm |
Style |
BS3G210 |
Resistant To |
Fuels, Gasoline, Hydraulic Fluid, Lubricants, Oils |
Name of Manufacturer/Packer/Importer |
RS Component |
