| Features | Ideal for detecting the level of hypochlorous acid solution |
| Model No | HL-S1A(上昇ON) |

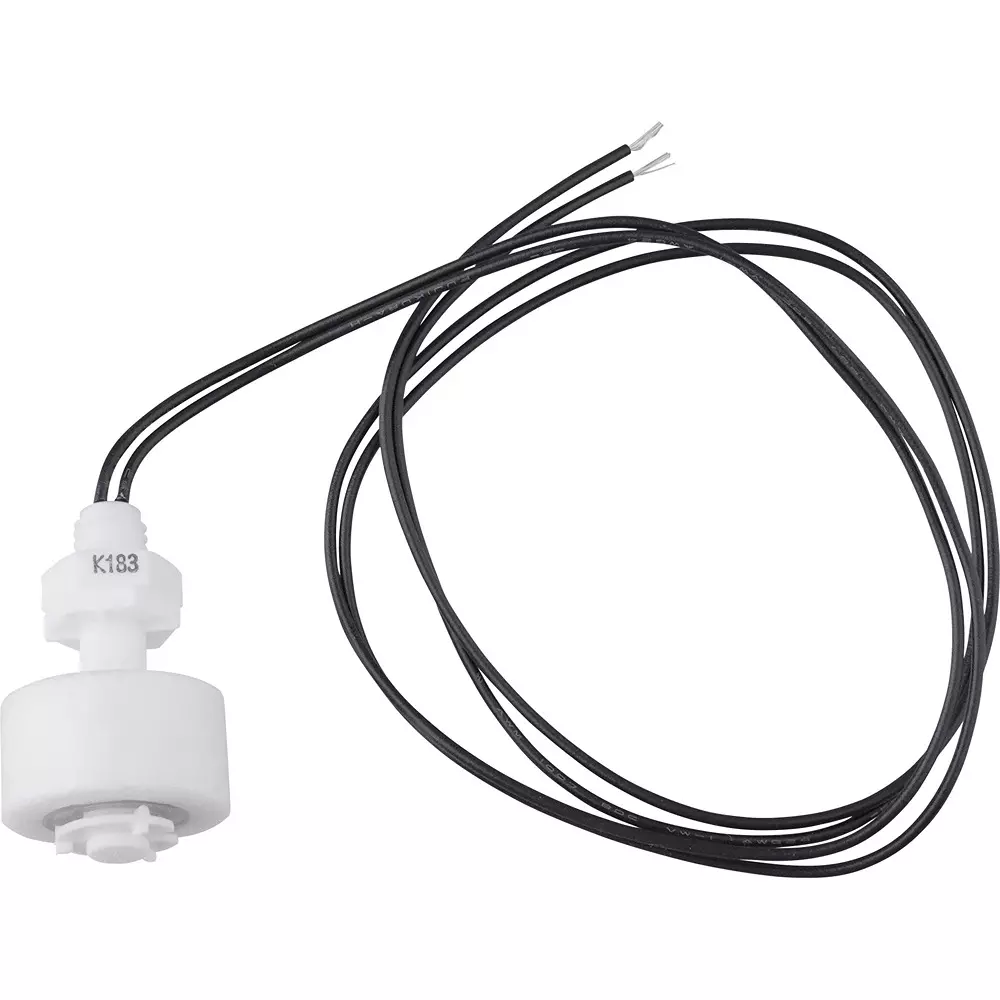

| Type of Product | Float Switch |
| Country of Origin | Japan |
Features |
Ideal for detecting the level of hypochlorous acid solution |
Model No |
HL-S1A(上昇ON) |
Type of Product |
Float Switch |
Country of Origin |
Japan |
Operating Temperature Range |
-10 to 80 |
Maximum Switching Capacity |
10VA/10W |
Maximum Switching Current |
0.5 Amp |
Part No |
1-9129-03 |
Monotaro ID |
33208147 |
Type of Sign |
Vertical installation |
Name of Manufacturer/Packer/Importer |
Watty |
Import Country |
Direct Import from Japan |
Detection Method |
Reed switch type |
Contact Resistance (ohm) |
Initial 300 |
Material (Part) |
PP (polypropylene) |
Food Sanitation Act |
Conformity |
Operations |
ON when liquid level rises (5.5±1.5mm) |
Mounting Screw |
M8xP1.25 |
Electric Wire |
UL1007 AWG24 |
Maximum Operating Voltage |
AC100/DC100 |
No. of Control Points |
1 |
Applicable Voltage (V) |
Maximum AC100 / DC100 |
Material (Stem) |
PP (polypropylene) |
Applicable Fluid |
Water (standard liquid) |
Mounting Hole Size |
M8xP1.25 |
