| Material | Q235B (SS400 equivalent) |
| Country of Origin | China |

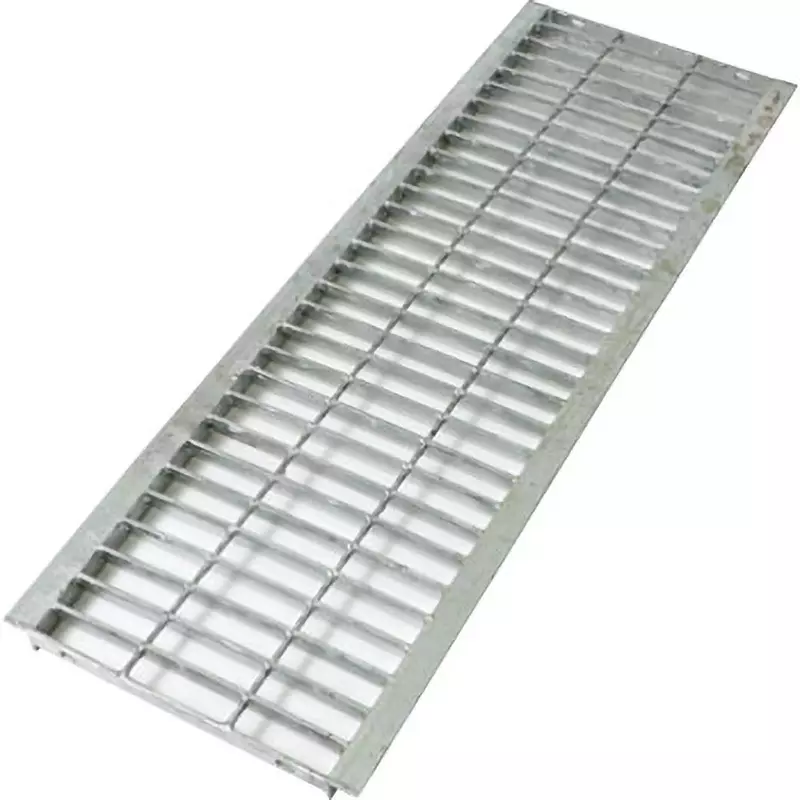

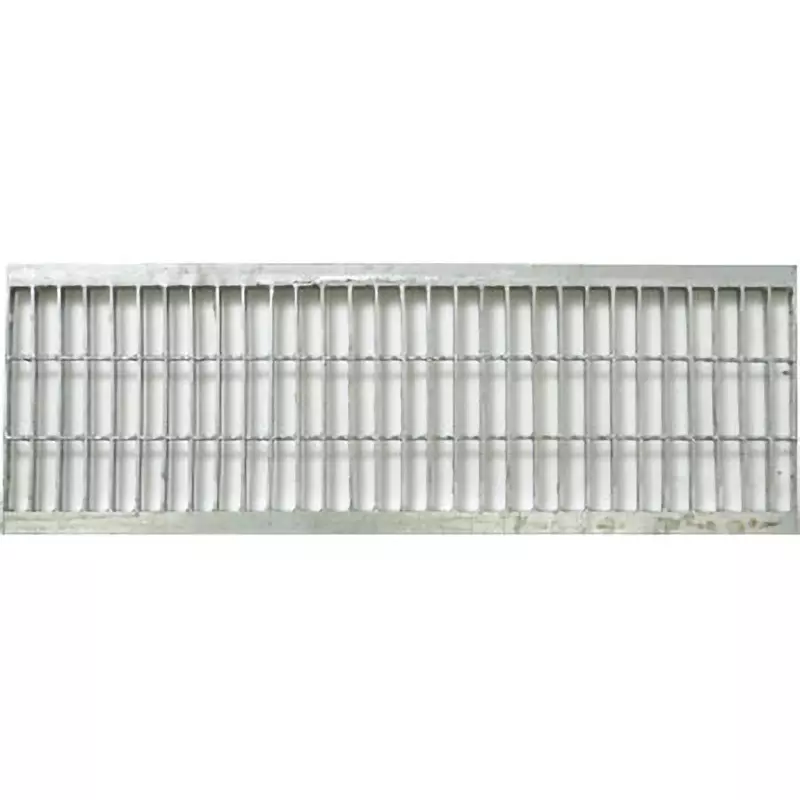

| Type of Product | Grating for Sidewalks |
| Model No | MCF30-19 |
Material |
Q235B (SS400 equivalent) |
Country of Origin |
China |
Type of Product |
Grating for Sidewalks |
Model No |
MCF30-19 |
Shape |
Coarse plane |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Length (mm) |
About 995 |
Height (mm) |
About 30 |
Type |
For sidewalk |
Monotaro ID |
18640598 |
Surface Treatment |
Zinc plating |
Import Country |
Direct Import from Japan |
Mass (Kg) |
About 8.6 |
Cell Spacing (mm) |
About 33 |
No. of Piece |
(Reinforcing rod) 2 |

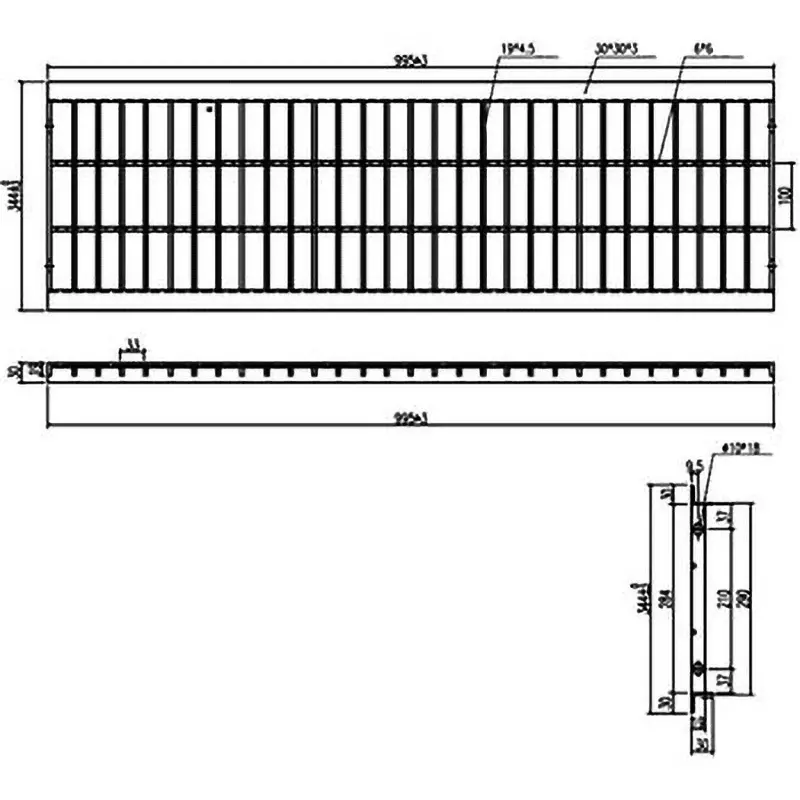

Dimension D1 (mm) |
About 344 |
Teeth Spacing |
Coarse |
Dimensions of Angled Steel (mm) |
30x30x3 |
Groove Width (mm) |
About 300 |
Bar Height (mm) |
About 19 |
Tolerance |
±3mm |
Consolidation Method |
(One side connection hole) 2 |
Uniform Load (kN / m²) |
About 5 |
Dimension D2 (mm) |
About 290 |
