| Material | Q235B (SS400 equivalent) |
| Country of Origin | Japan |
| Type of Product | Grating for Sidewalks, Pressure-Welded Type |
| Model No | 17-19 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Material |
Q235B (SS400 equivalent) |
Country of Origin |
Japan |
Type of Product |
Grating for Sidewalks, Pressure-Welded Type |
Model No |
17-19 |
Shape |
Coarse plane |
Name of Manufacturer/Packer/Importer |
MonotaRO |
Length (mm) |
About 993 |
Height (mm) |
About 30 |
Type |
For sidewalk |
Monotaro ID |
18640625 |
Surface Treatment |
Zinc plating |
Import Country |
Direct Import from Japan |
Cell Spacing (mm) |
About 30 |
No. of Piece |
(Reinforcing rod) 2 |

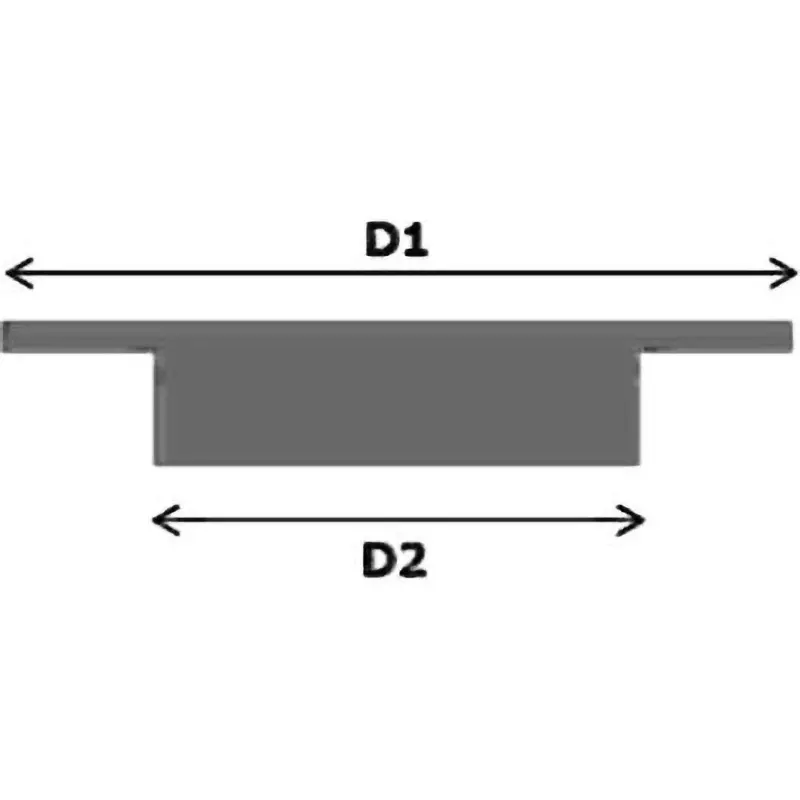

Dimension D1 (mm) |
About 224 |
Teeth Spacing |
Coarse |
Dimensions of Angled Steel (mm) |
30x30x3 |
Groove Width (mm) |
About 180 |
Bar Height (mm) |
About 19 |
Tolerance |
±3mm |
Uniform Load (kN / m²) |
About 5 |
Dimension D2 (mm) |
About 170 |
