| Country of Origin | Japan |
| Type of Product | Silver Series Diamond Flange Unit (Stainless Silver) |
| Model No | MUFL005 |
| Name of Manufacturer/Packer/Importer | Fujikoshi Corporation |
Country of Origin |
Japan |
Type of Product |
Silver Series Diamond Flange Unit (Stainless Silver) |
Model No |
MUFL005 |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Monotaro ID |
12690258 |

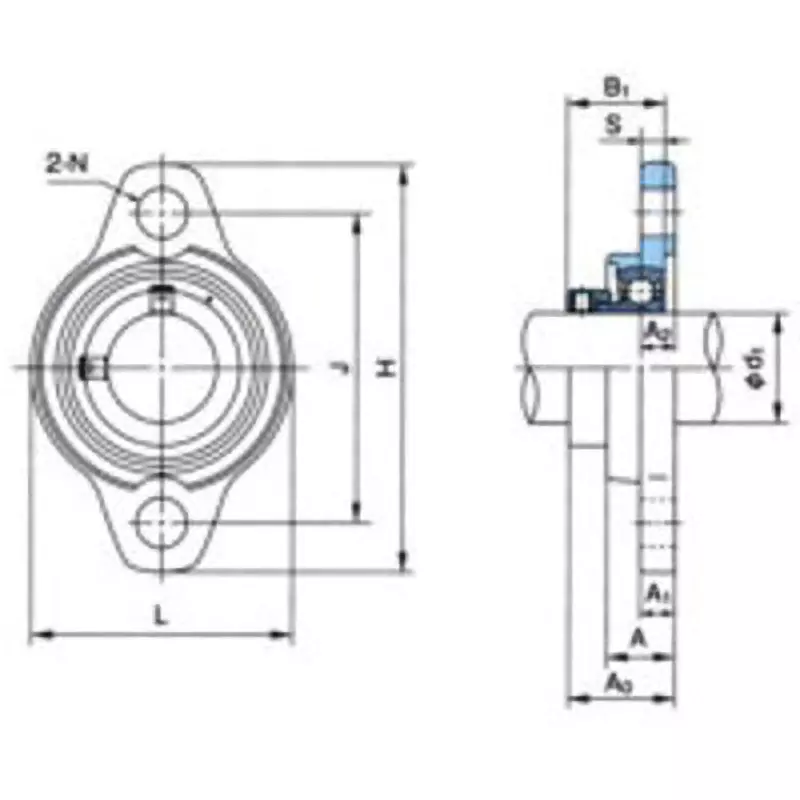

Dimension n (mm) |
10 |
Dimension L (mm) |
60 |
Dimensions H (mm) |
95 |
Import Country |
Direct Import from Japan |
Dimension A1 |
8 mm |
Dimension A2 (mm) |
8 |
Dimensions A (mm) |
16 |
Nominal Size |
MU005+ER |
Shaft diameter d1 (Φmm) |
25 |
Dimension A0 (mm) |
27.5 |
Dimension J (mm) |
75 |
Dimension B1 (mm) |
25.5 |
Dimension S |
6 mm |
Basic Rated Load Cr (kN) |
8600 |
Basic load rating Cor (N) |
4650 |
