| Country of Origin | Japan |
| Type of Product | Bearing Unit UFL Type |
| Model No | UFL003C |
| Name of Manufacturer/Packer/Importer | Fujikoshi Corporation |
Country of Origin |
Japan |
Type of Product |
Bearing Unit UFL Type |
Model No |
UFL003C |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Type |
UFL-C |
Monotaro ID |
12693180 |

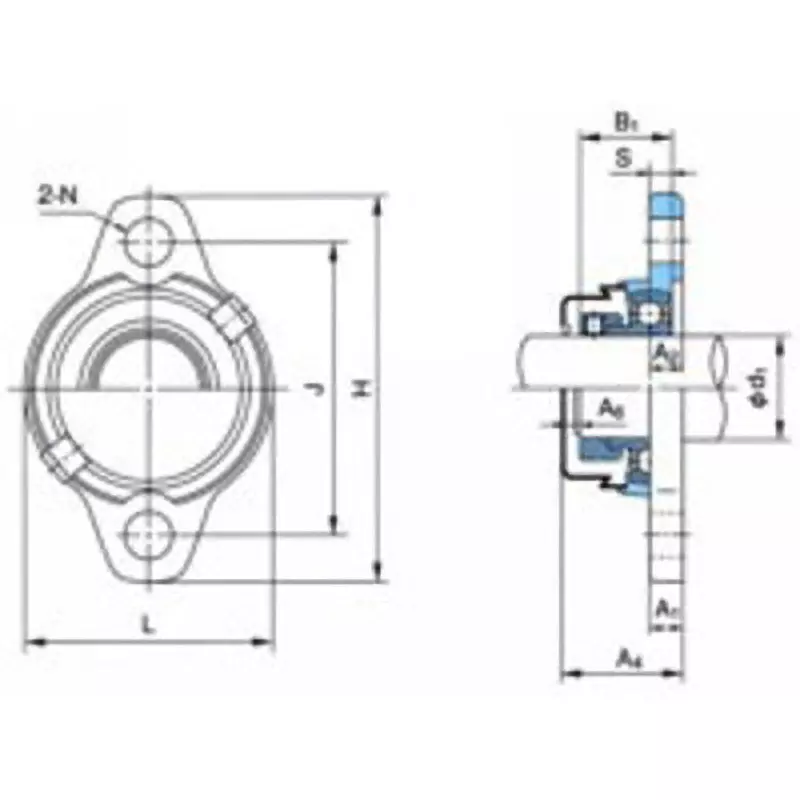

Dimension n (mm) |
7 |
Dimension L (mm) |
46 |
Dimensions H (mm) |
71 |
Import Country |
Direct Import from Japan |
Specifications |
With cover |
Dimension A1 |
7 mm |
Dimension A2 (mm) |
7 |
Dimensions A (mm) |
14 |
Nominal Size |
U003+ER |
Shaft diameter d1 (Φmm) |
17 |
Dimension A0 (mm) |
22.5 |
Dimension J (mm) |
56 |
Dimension B1 (mm) |
20.5 |
Dimension S |
5 mm |
Basic Rated Load Cr (kN) |
6000 |
Basic load rating Cor (N) |
3300 |
Dimension A4 (mm) |
26 |
Dimension A6 (mm) |
2 |
