| Country of Origin | Japan |
| Type of Product | Silver Series Diamond Flange Unit (Stainless Silver) |
| Model No | MUFL001 |
| Name of Manufacturer/Packer/Importer | Fujikoshi Corporation |
Country of Origin |
Japan |
Type of Product |
Silver Series Diamond Flange Unit (Stainless Silver) |
Model No |
MUFL001 |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Monotaro ID |
12690215 |

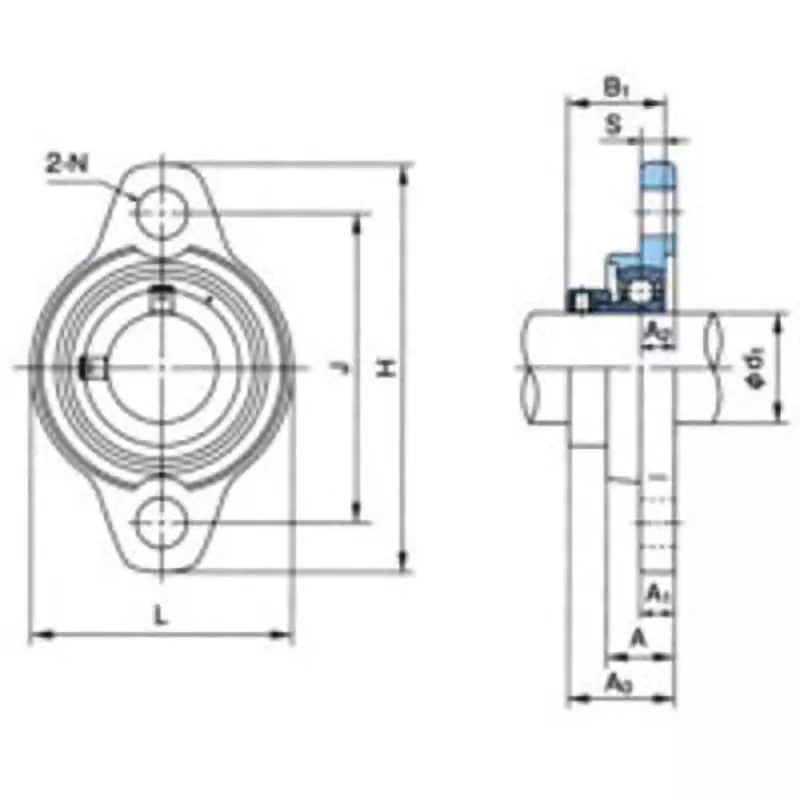

Dimension n (mm) |
7 |
Dimension L (mm) |
38 |
Dimensions H (mm) |
63 |
Import Country |
Direct Import from Japan |
Dimension A1 |
5.5 mm |
Dimension A2 (mm) |
5.5 |
Dimensions A (mm) |
11.5 |
Nominal Size |
MU001+ER |
Shaft diameter d1 (Φmm) |
12 |
Dimension A0 (mm) |
19 |
Dimension J (mm) |
48 |
Dimension B1 (mm) |
17.5 |
Dimension S |
4 mm |
Basic Rated Load Cr (kN) |
4300 |
Basic load rating Cor (N) |
1900 |
