Ships within 19 days
View
View
View
View
| Country of Origin | Japan |
| Type of Product | Silver Series Diamond Flange Unit (Stainless Silver) |
| Model No | MUFL003 |
| Name of Manufacturer/Packer/Importer | Fujikoshi Corporation |
Country of Origin |
Japan |
Type of Product |
Silver Series Diamond Flange Unit (Stainless Silver) |
Model No |
MUFL003 |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Monotaro ID |
12690240 |

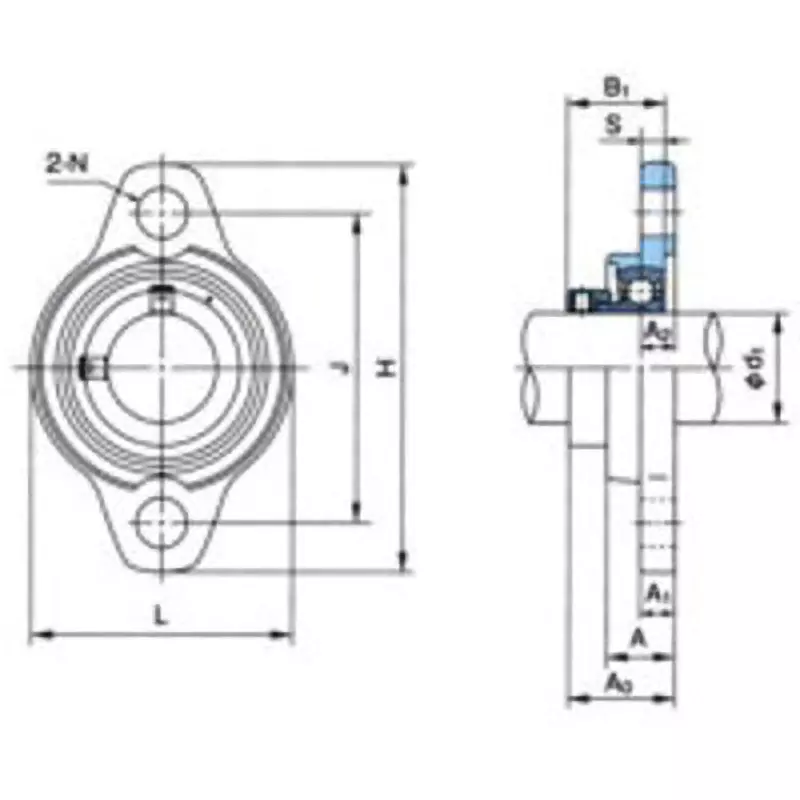

Dimension n (mm) |
7 |
Dimension L (mm) |
46 |
Dimensions H (mm) |
71 |
Import Country |
Direct Import from Japan |
Dimension A1 |
7 mm |
Dimension A2 (mm) |
7 |
Dimensions A (mm) |
14 |
Nominal Size |
MU003+ER |
Shaft diameter d1 (Φmm) |
17 |
Dimension A0 (mm) |
22.5 |
Dimension J (mm) |
56 |
Dimension B1 (mm) |
20.5 |
Dimension S |
5 mm |
Basic Rated Load Cr (kN) |
5100 |
Basic load rating Cor (N) |
2650 |
