| Country of Origin | Japan |
| Type of Product | Silver Series Diamond Flange Unit (Stainless Silver) |
| Model No | MUFL006 |
| Name of Manufacturer/Packer/Importer | Fujikoshi Corporation |
Country of Origin |
Japan |
Type of Product |
Silver Series Diamond Flange Unit (Stainless Silver) |
Model No |
MUFL006 |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Monotaro ID |
12690267 |

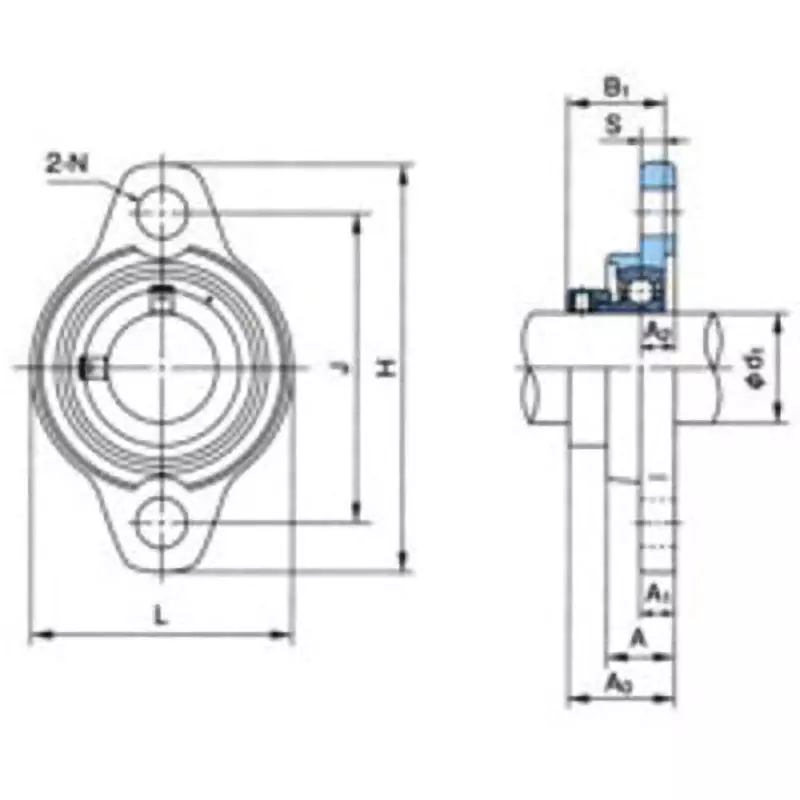

Dimension n (mm) |
13 |
Dimension L (mm) |
70 |
Dimensions H (mm) |
112 |
Import Country |
Direct Import from Japan |
Dimension A1 |
9 mm |
Dimension A2 (mm) |
9 |
Dimensions A (mm) |
18 |
Nominal Size |
MU006+ER |
Shaft diameter d1 (Φmm) |
30 |
Dimension A0 (mm) |
29 |
Dimension J (mm) |
85 |
Dimension B1 (mm) |
26.5 |
Dimension S |
6.5 mm |
Basic Rated Load Cr (kN) |
11300 |
Basic load rating Cor (N) |
6600 |
