Ships within 19 days
View
View
View
View
| Country of Origin | Japan |
| Type of Product | Bearing Unit UFL Type |
| Model No | UFL004E |
| Name of Manufacturer/Packer/Importer | Fujikoshi Corporation |
Country of Origin |
Japan |
Type of Product |
Bearing Unit UFL Type |
Model No |
UFL004E |
Name of Manufacturer/Packer/Importer |
Fujikoshi Corporation |
Type |
UFL-E |
Monotaro ID |
12693216 |

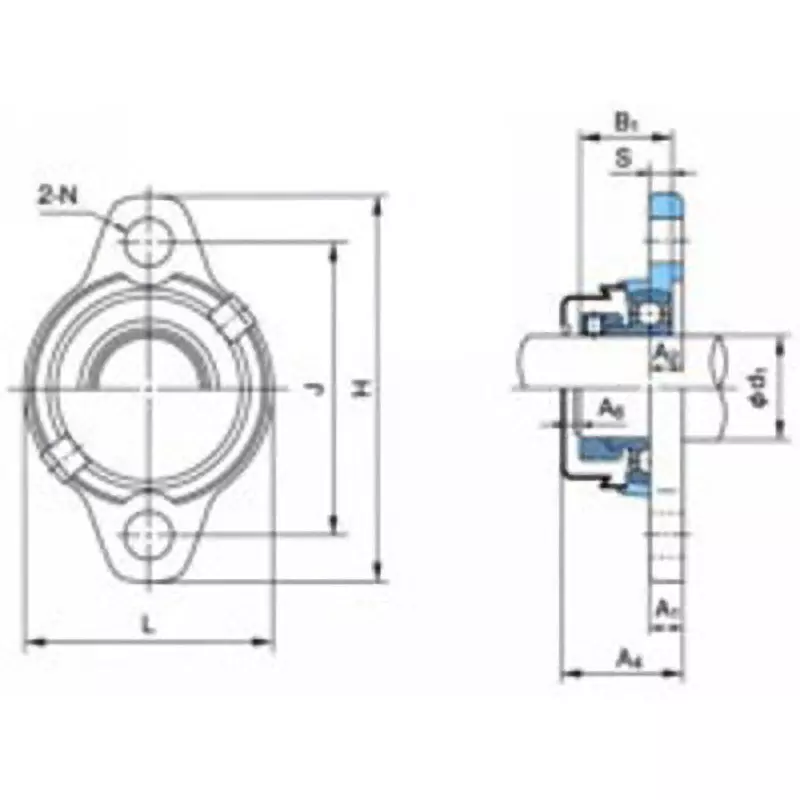

Dimension n (mm) |
10 |
Dimension L (mm) |
55 |
Dimensions H (mm) |
90 |
Import Country |
Direct Import from Japan |
Specifications |
With cover |
Dimension A1 |
8 mm |
Dimension A2 (mm) |
8 |
Dimensions A (mm) |
16 |
Nominal Size |
U004+ER |
Shaft diameter d1 (Φmm) |
20 |
Dimension A0 (mm) |
26.5 |
Dimension J (mm) |
71 |
Dimension B1 (mm) |
24.5 |
Dimension S |
6 mm |
Basic Rated Load Cr (kN) |
9350 |
Basic load rating Cor (N) |
5100 |
Dimension A4 (mm) |
31 |
Dimension A6 (mm) |
3 |
