Ships within 25 days
View
View
View
View
| Weight | 380 g |
| Material | Body: Aluminum Alloy (ADC), Wheel: Polyamide (PA6), Bottom: Synthetic Rubber (NBR) |
| Country of Origin | Japan |
| Type of Product | Carry Master |
Weight |
380 g |
Material |
Body: Aluminum Alloy (ADC), Wheel: Polyamide (PA6), Bottom: Synthetic Rubber (NBR) |
Country of Origin |
Japan |
Type of Product |
Carry Master |
Model No |
K-92-50F |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Pack of |
1 Pc |
Monotaro ID |
62815743 |

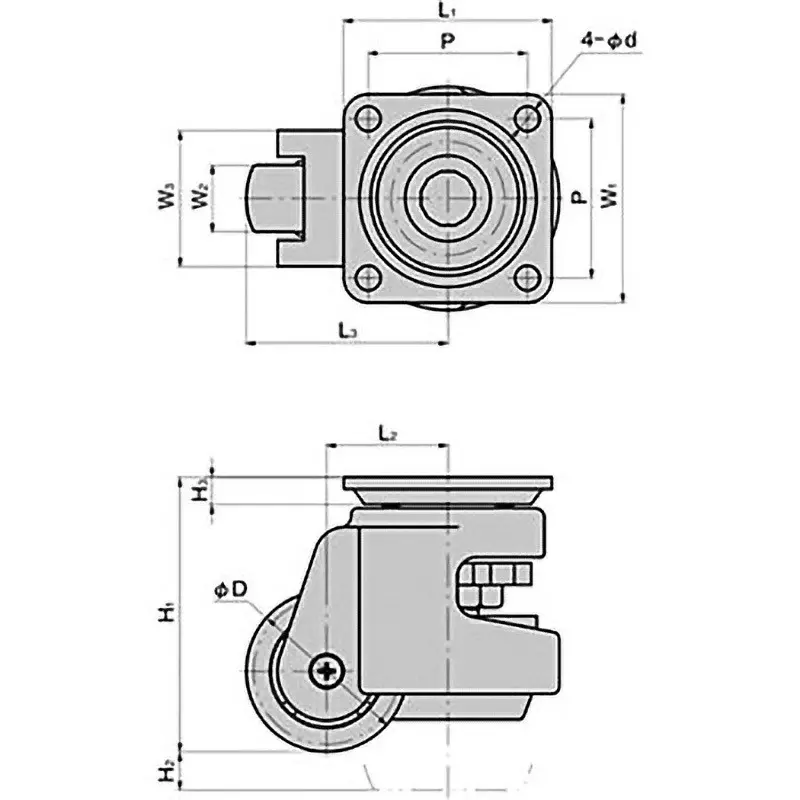

Dimensions L1 (mm) |
55 |
Dimensions l2 (mm) |
32 |
TAKIGEN Code |
31551 |
Surface Finish Type |
Body / Powder Coating (White), Mounting Base / Zinc Plating Chromate Treatment (MFZn-C), Adjuster / Zinc Plating Chromate Treatment (MFZn-C) |
Dimensions H2 (mm) |
10 |
Dimensions H1 (mm) |
71 |
Dimension D (Φmm) |
42 |
Dimensions W2 (mm) |
18 |
Dimensions W1 (mm) |
55 |
Dimension L3 (mm) |
53 |
Dimension H3 (mm) |
7 |
Dimension W3 (mm) |
36 |
Dimensions P (mm) |
42 |
Operating Temperature |
-10 to +60° |
Allowable Loads |
N/1: 343N, N/4: 980N |
Import Country |
Direct Import from Japan |
