| Material | Steel Plate Cold Commercial (SPCC) |
| Country of Origin | Japan |
| Product Type | No hole |

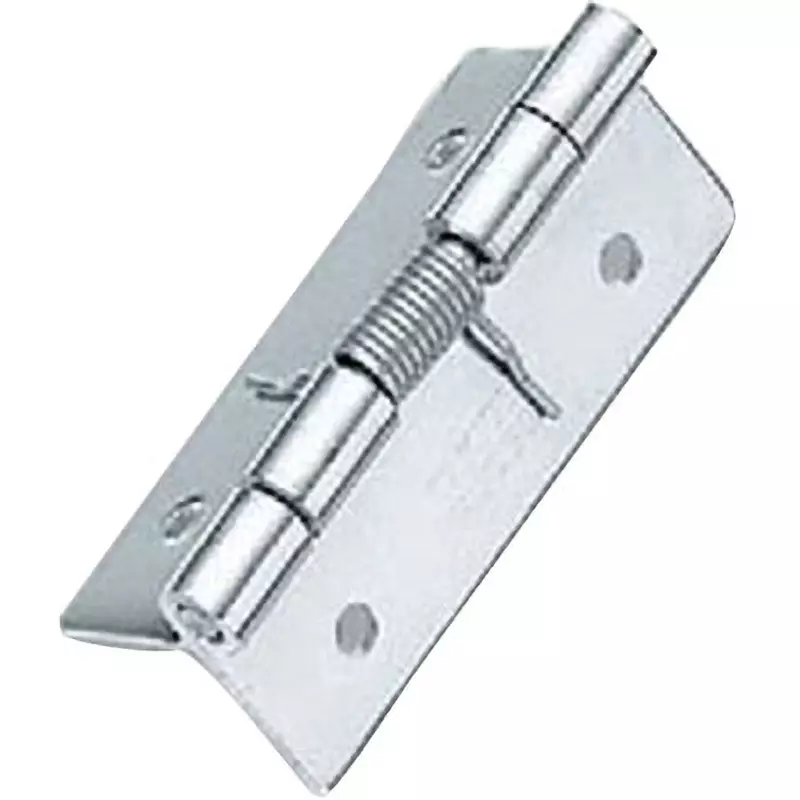

| Type of Product | Hinge With Spring (L = 38) |
Material |
Steel Plate Cold Commercial (SPCC) |
Country of Origin |
Japan |
Product Type |
No hole |
Type of Product |
Hinge With Spring (L = 38) |
Model No |
B-46-2 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61105835 |

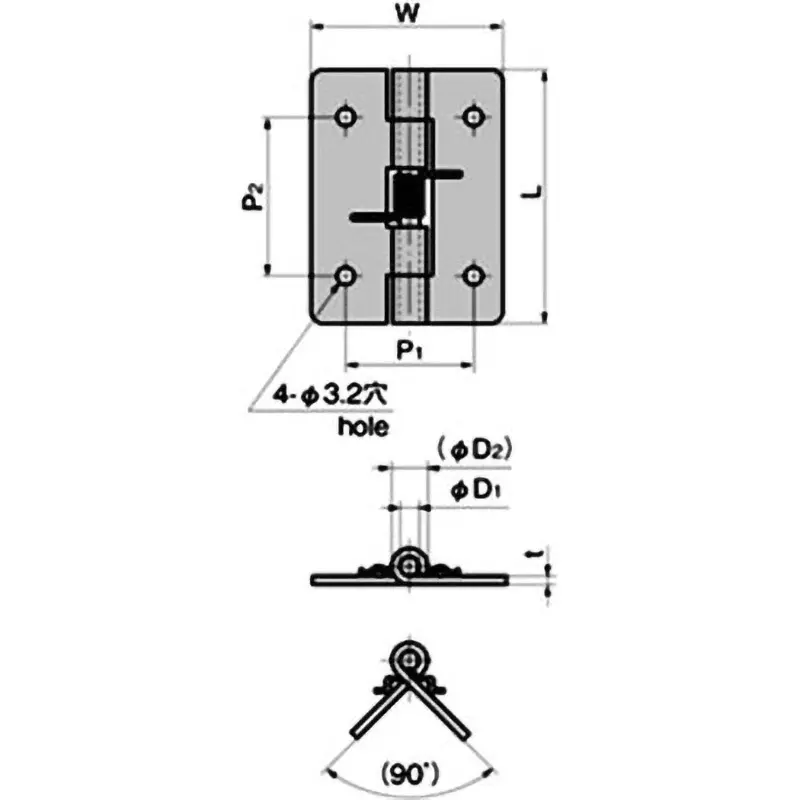

Dimension P1 (mm) |
20 |
TAKIGEN Code |
10135 |
Dimension L (mm) |
38 |
Surface Finish Type |
Zinc plating chromate treatment (MFZn-C) |
Dimension d2 (Φmm) |
6.5 |
Dimension d1 (Φmm) |
3 |
Dimension P2 (mm) |
26 |
Import Country |
Direct Import from Japan |
Mass (g) |
20 |
Allowable Load (kg) |
4 (when using 2 vertical) |
Dimension W |
32 mm |
Dimension T |
1.6 mm |
