| Material | Stainless steel sheet (SUS304) |
| Country of Origin | Japan |

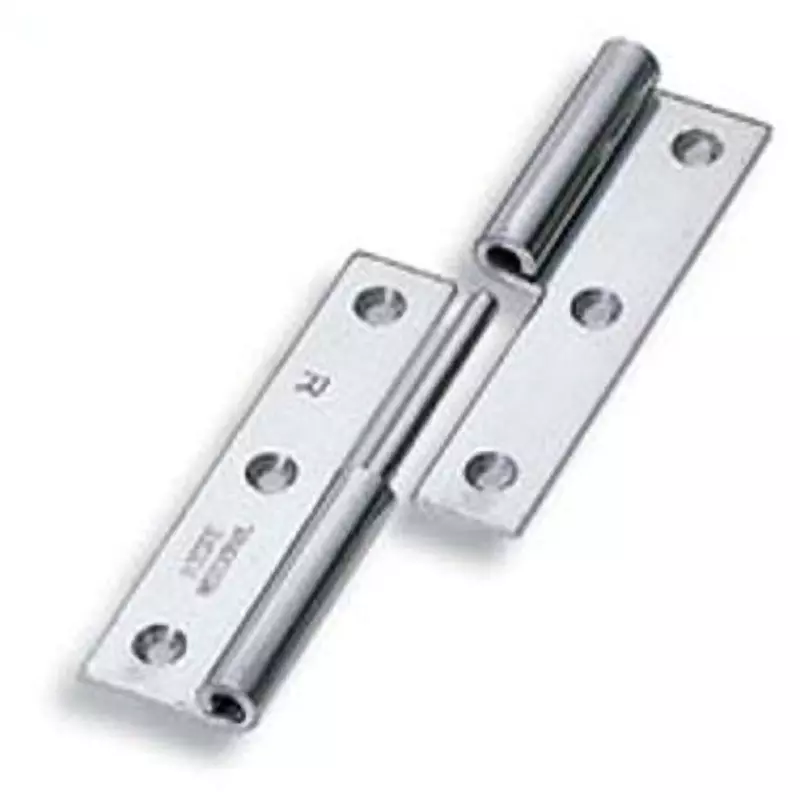

| Type of Product | Stainless Steel Square Insertion Hinge (L50 X W32 X T1.5) |
| Model No | B-1004-3-Rperforated |
Material |
Stainless steel sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Stainless Steel Square Insertion Hinge (L50 X W32 X T1.5) |
Model No |
B-1004-3-Rperforated |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61110516 |

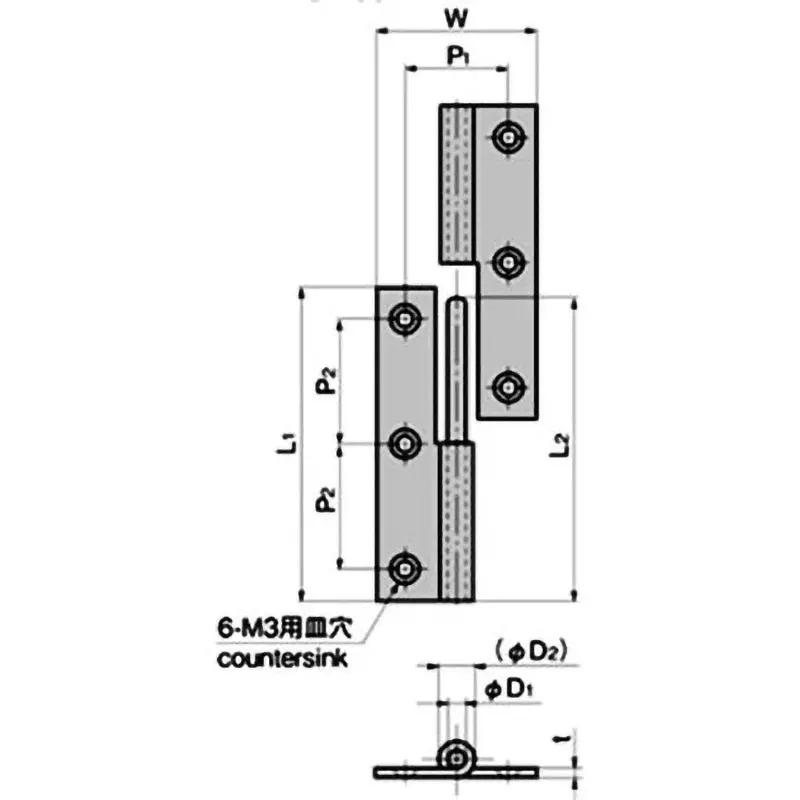

Dimension P1 (mm) |
21 |
TAKIGEN Code |
10568 |
Surface Finish Type |
Mirror buffing |
Dimension d2 (Φmm) |
7.3 |
Dimension d1 (Φmm) |
4 |
Dimension P2 (mm) |
20 |
Left or Right |
Right type |
Import Country |
Direct Import from Japan |
Mass (Kg) |
7 (Reference door for 2 vertical specifications) |
Mass (g) |
30 |
Dimension L2 |
49 mm |
Dimension W |
32 mm |
Dimension L1 |
50 mm |
Dimension T |
1.5 mm |
with or without Hole |
Autumn |
