| Material | Stainless steel sheet (SUS304) |
| Country of Origin | Japan |
| Type of Product | Flat Hinge Hole AKI |
| Model No | B-1100-6 |
Material |
Stainless steel sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Flat Hinge Hole AKI |
Model No |
B-1100-6 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61112275 |

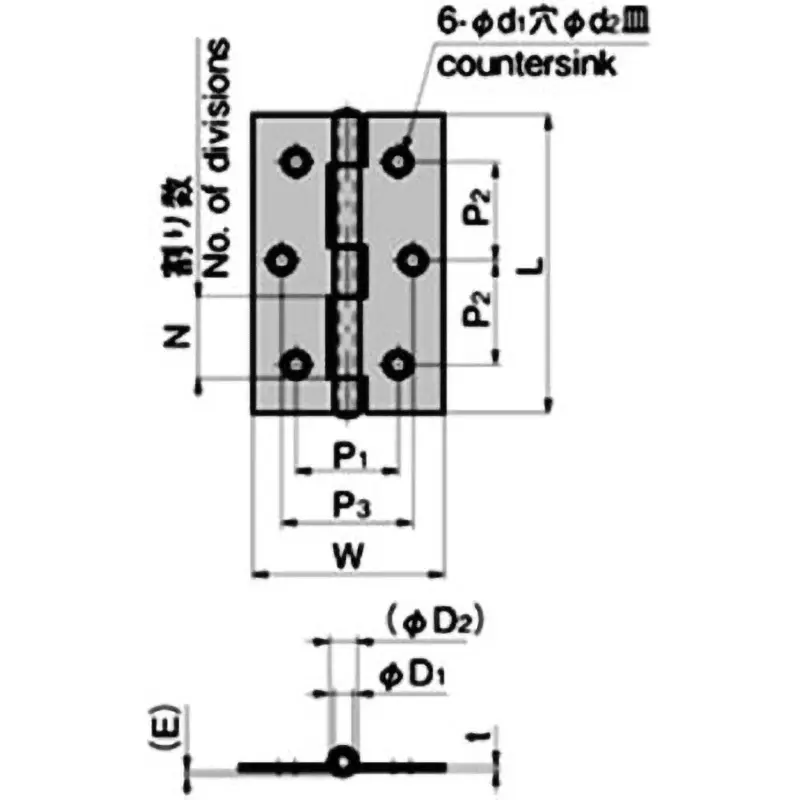

Dimension n (mm) |
5 |
Dimension P3 (mm) |
32.6 |
Dimension P1 (mm) |
24.6 |
TAKIGEN Code |
10714 |
Dimension L (mm) |
76 |
Surface Finish Type |
Hairline finish |
Dimension d2 (Φmm) |
6.2 |
Dimension d1 (Φmm) |
3.5 |
Dimension P2 (mm) |
26 |
Import Country |
Direct Import from Japan |
Mass (g) |
45 |
Dimensions E (mm) |
1 |
Dimension W |
47 mm |
Dimension T |
1.2 mm |
Applicable Door Height (mm) |
1200 |
Door Dimensions, Height x Width (mm) |
1200x600 |
Applicable Door Mass (Kg) |
14 |
Applicable Door Width (mm) |
600 |
