| Material | Polyamide 6 (PA6) |
| Country of Origin | Japan |

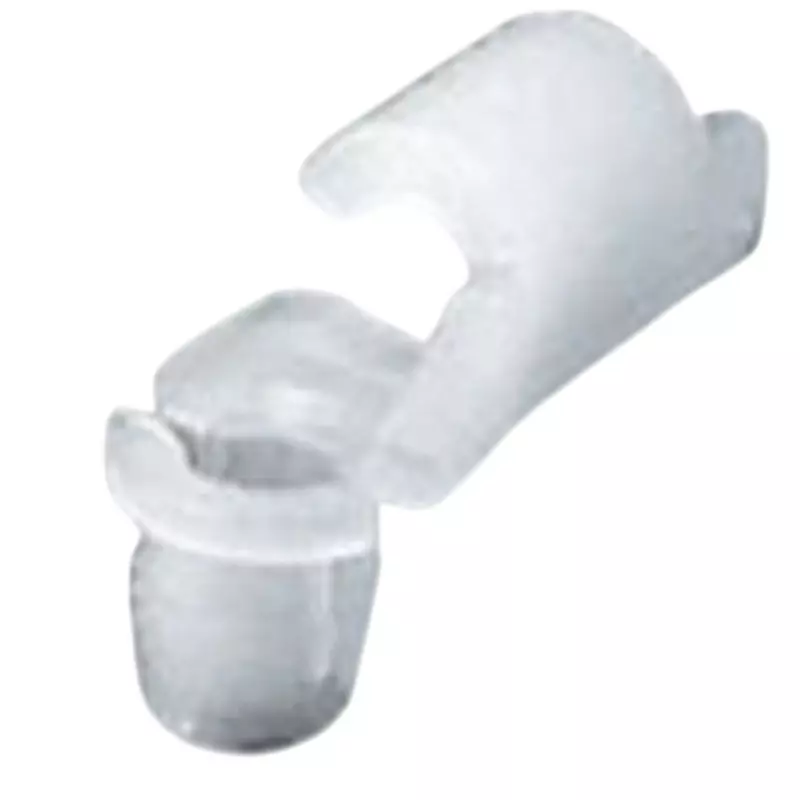

| Type of Product | Quick Bush (for Φ6) White |
| Model No | AC-25-Q-13 |
Material |
Polyamide 6 (PA6) |
Country of Origin |
Japan |
Type of Product |
Quick Bush (for Φ6) White |
Model No |
AC-25-Q-13 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61092553 |
TAKIGEN Code |
1675 |

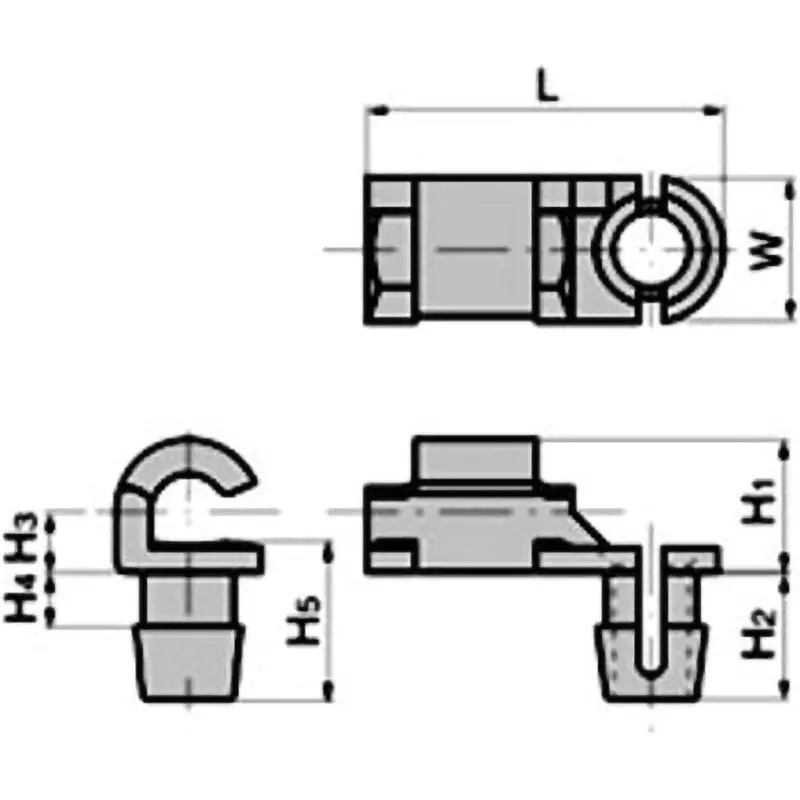

Dimension L (mm) |
29.5 |
Standard Color |
White |
Dimension H3 (mm) |
5 |
Dimension H5 (mm) |
10.5 |
Dimension H4 (mm) |
2.5 |
Suitable Thickness of Workpiece (mm) |
2 to 2.5 |
Import Country |
Direct Import from Japan |
Mass (g) |
2 |
Dimension W |
12 mm |
Dimension H1 |
11 mm |
Dimension H2 |
8.5 mm |
Applicable Rod Diameter |
6 mm |
Dimension R |
1.5 mm |
Mounting Hole Diameter (Φmm) |
8 |
Dimension H6 (mm) |
12.5 |
