| Material | Stainless steel sheet (SUS304) |
| Country of Origin | Japan |
| Type of Product | Stainless Steel Butt Hinge, With Hole |
| Model No | B-1078-11 |
Material |
Stainless steel sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Stainless Steel Butt Hinge, With Hole |
Model No |
B-1078-11 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61111968 |

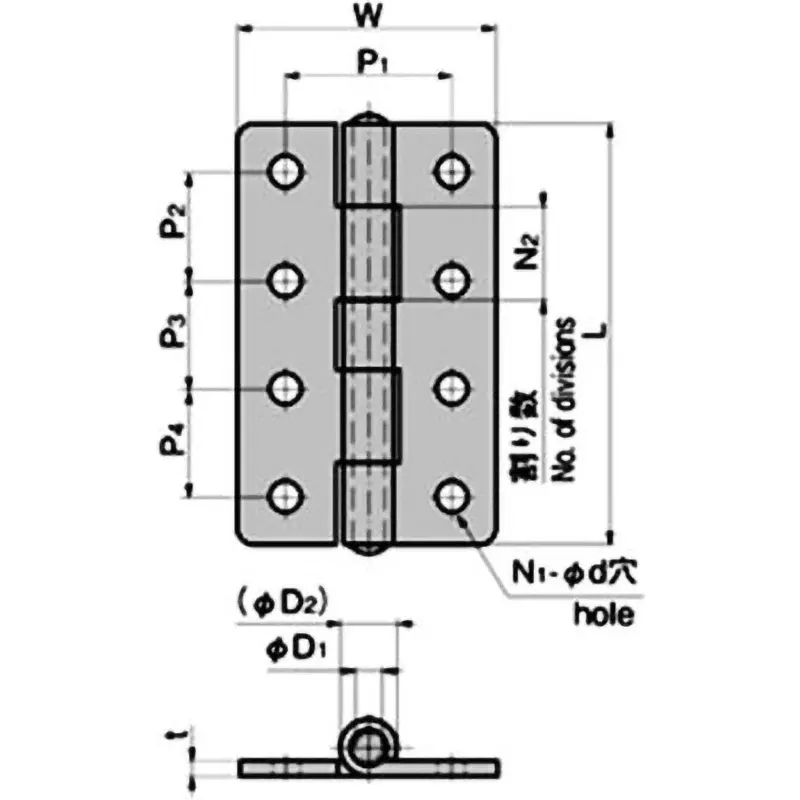

Dimension P1 (mm) |
22 |
Dimension L (mm) |
40 |
Surface Finish Type |
Mirror buffing |
Dimension d2 (Φmm) |
6.3 |
Dimension d1 (Φmm) |
3 |
Dimension D (Φmm) |
3.2 |
Dimension P2 (mm) |
26 |
Dimension N2 (mm) |
3 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
Door: 7.1 |
Mass (g) |
25 |
Allowable Load (kg) |
7.1 |
Number of Holes |
N1：4 |
Dimension W |
35 mm |
Dimension T |
1.5 mm |
Applicable Door Height (mm) |
600 |
Door Dimensions, Height x Width (mm) |
600x300 |
Applicable Door Mass (Kg) |
7.1 |
Applicable Door Width (mm) |
300 |
