| Material | EPDM |
| Country of Origin | Japan |
| Color | Black |

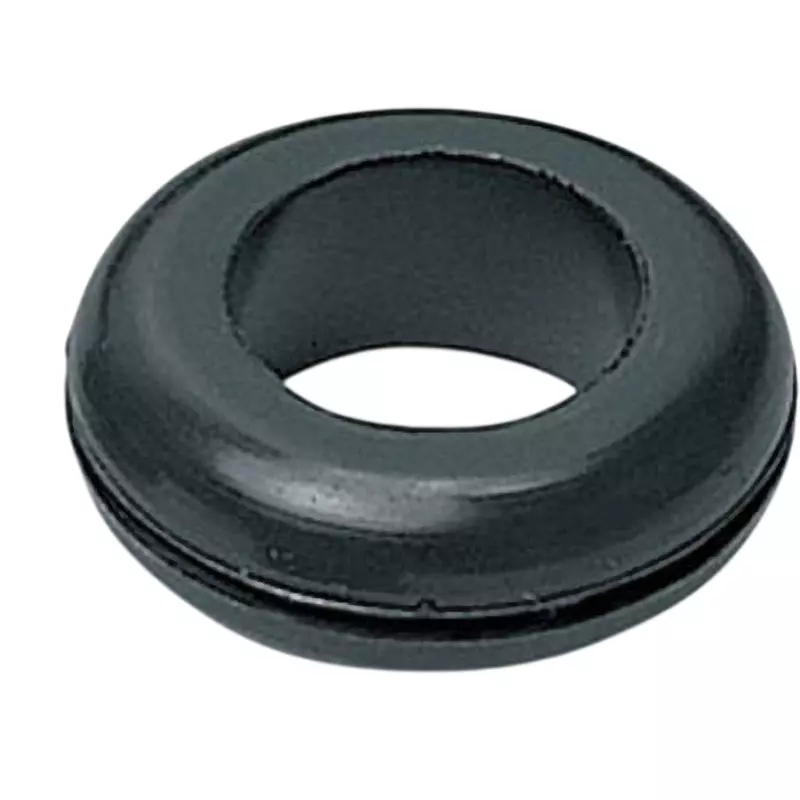

| Type of Product | Flame Retardant Grommet |
Material |
EPDM |
Country of Origin |
Japan |
Color |
Black |
Type of Product |
Flame Retardant Grommet |
Model No |
C-30-BW-22-1-EP-UL |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Hardness |
50°±5° |
Features |
Flame retardance |
Type |
Grommet |
Monotaro ID |
61115547 |
TAKIGEN Code |
24187 |

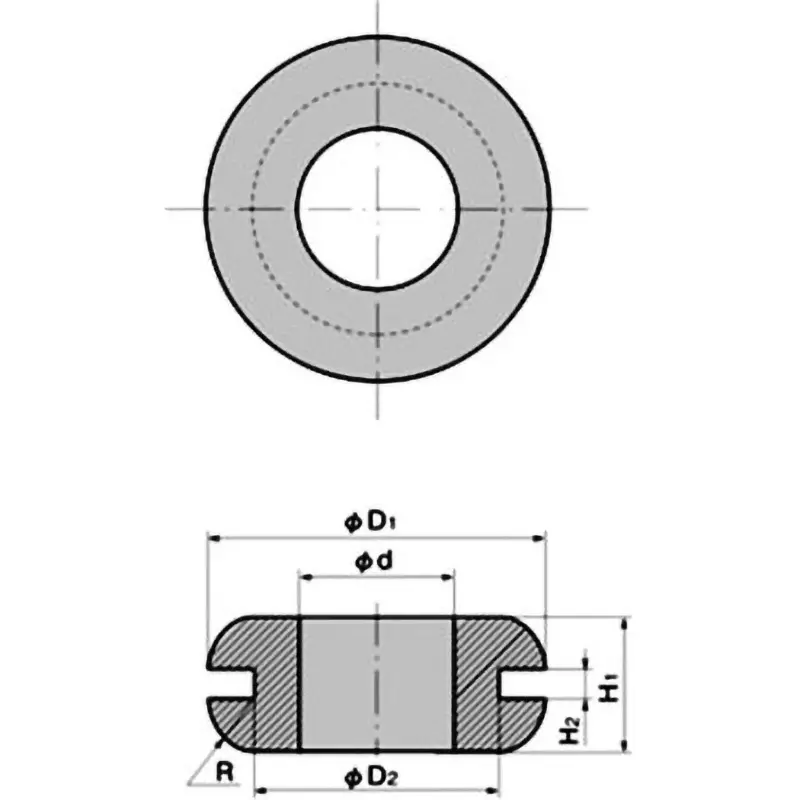

Dimension d2 (Φmm) |
32 |
Dimension d1 (Φmm) |
40 |
Dimension D (Φmm) |
22 |
Operating Temperature Range |
Up to 70°C |
Import Country |
Direct Import from Japan |
Mass (g) |
15 |
Inner Diameter |
22 mm |
Dimension H1 |
12 mm |
Dimension H2 |
1 mm |
Operation Ambient Temperature (°C) |
Up to 70 |
Dimension R |
5 mm |
