Ships within 25 days
View
View
View
View
| Material | Stainless steel sheet (SUS304) |
| Country of Origin | Japan |
| Type of Product | Stainless Steel Oval Type Hinge (Total Length = 31) |
| Model No | B-1005-3-R |
Material |
Stainless steel sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Stainless Steel Oval Type Hinge (Total Length = 31) |
Model No |
B-1005-3-R |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
62805365 |

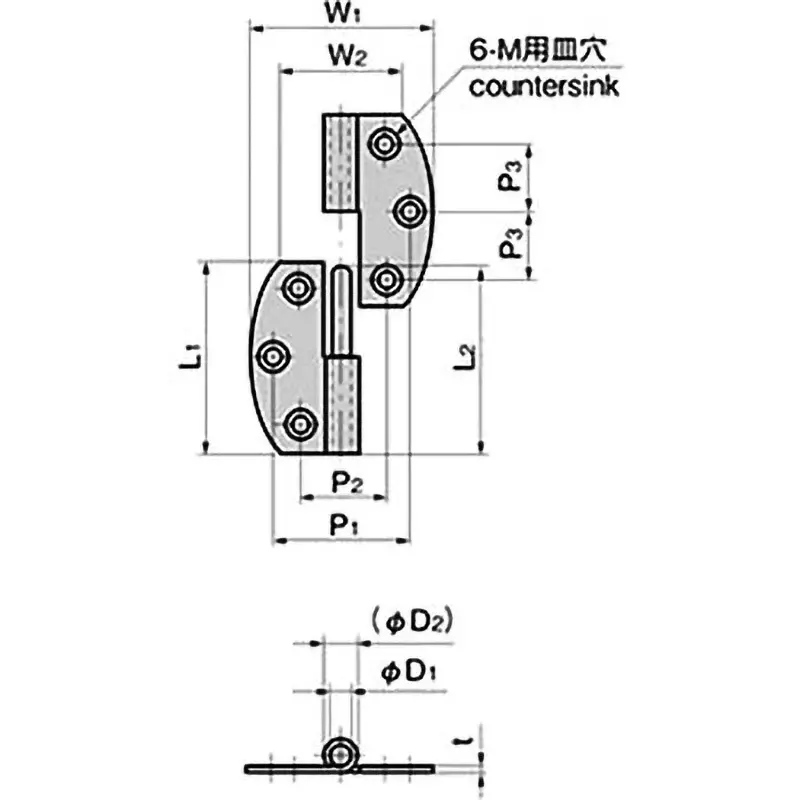

Dimension P3 (mm) |
12.5 |
Dimension P1 (mm) |
18 |
TAKIGEN Code |
10574 |
Surface Finish Type |
Mirror buffing |
Dimension M |
M2.5 |
Dimension d2 (Φmm) |
3.8 |
Dimension d1 (Φmm) |
2 |
Dimension P2 (mm) |
12 |
Import Country |
Direct Import from Japan |
Mass (Kg) |
2 (reference door when using 2 vertical) |
Mass (g) |
5 |
Dimension L2 |
30.5 mm |
Dimension L1 |
31 mm |
Dimension W2 (mm) |
19 |
Dimension T |
0.8 mm |
Dimension W1 (mm) |
28 |
