| Country of Origin | Japan |

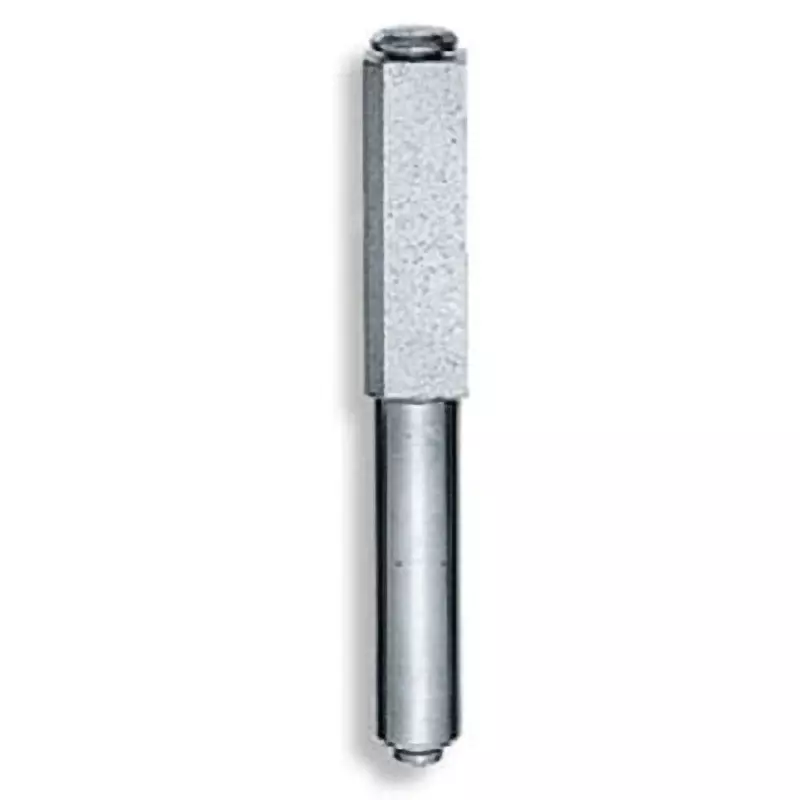

| Type of Product | 2-Tube Square Hinge Pin (Φ5 X L80) |
| Model No | B-980-3 |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |
Country of Origin |
Japan |
Type of Product |
2-Tube Square Hinge Pin (Φ5 X L80) |
Model No |
B-980-3 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61110105 |
TAKIGEN Code |
10544 |
Surface Finish Type |
Tube: Fabric, Shaft: Zinc plating chromate treatment (MFZn-C) |

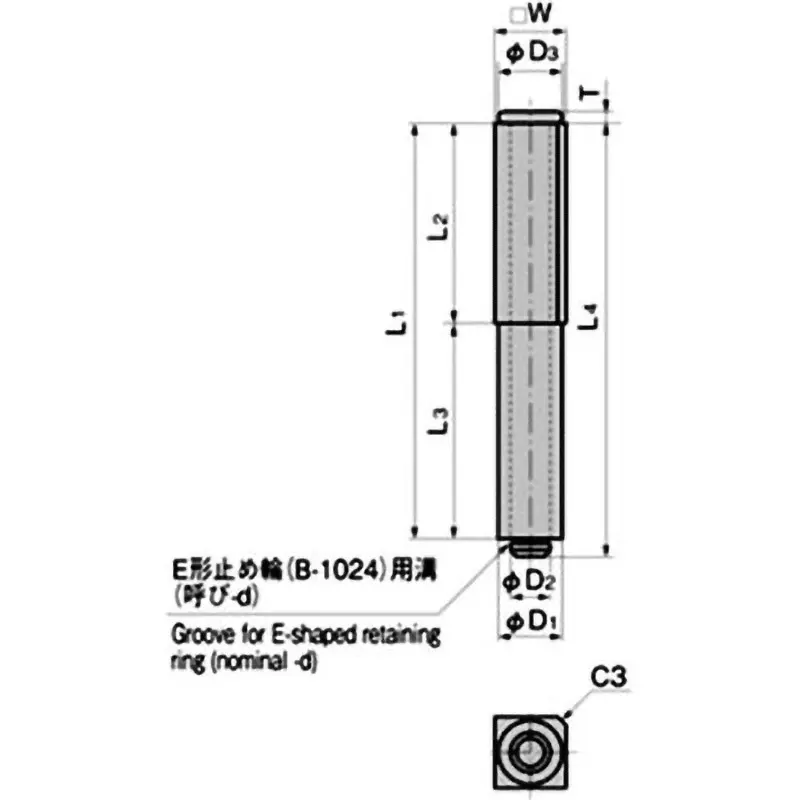

Dimension d2 (Φmm) |
5 |
Dimension d1 (Φmm) |
10 |
Square Dimension W (mm) |
12 |
Dimension L3 (mm) |
35 |
Shaft Material |
Carbon steel wire for cold heading (SWCH) |
Dimension d3 (Φmm) |
10 |
Pipe Material |
Carbon steel pipe for machine structure (STKM) |
Import Country |
Direct Import from Japan |
Mass (g) |
75 |
Dimensions D (mm) |
4 (Product number: B-1024-4) |
Dimension L2 |
35 mm |
Dimension L1 |
70 mm |
Dimension T |
2 mm |
Dimension L4 |
80 mm |
