| Material | EPDM |
| Country of Origin | Japan |
| Color | Ivory (2.5Y9 / 1 equivalent color) |
| Type of Product | Flame-Retardant Rubber Foot (with Stainless Steel Washer) |
Material |
EPDM |
Country of Origin |
Japan |
Color |
Ivory (2.5Y9 / 1 equivalent color) |
Type of Product |
Flame-Retardant Rubber Foot (with Stainless Steel Washer) |
Model No |
C-30-RK-38-EP-UL-Ivory |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Hardness |
70°±5° |
Features |
Flame retardance |
Type |
rubber foot |
Monotaro ID |
62808077 |
TAKIGEN Code |
24096 |

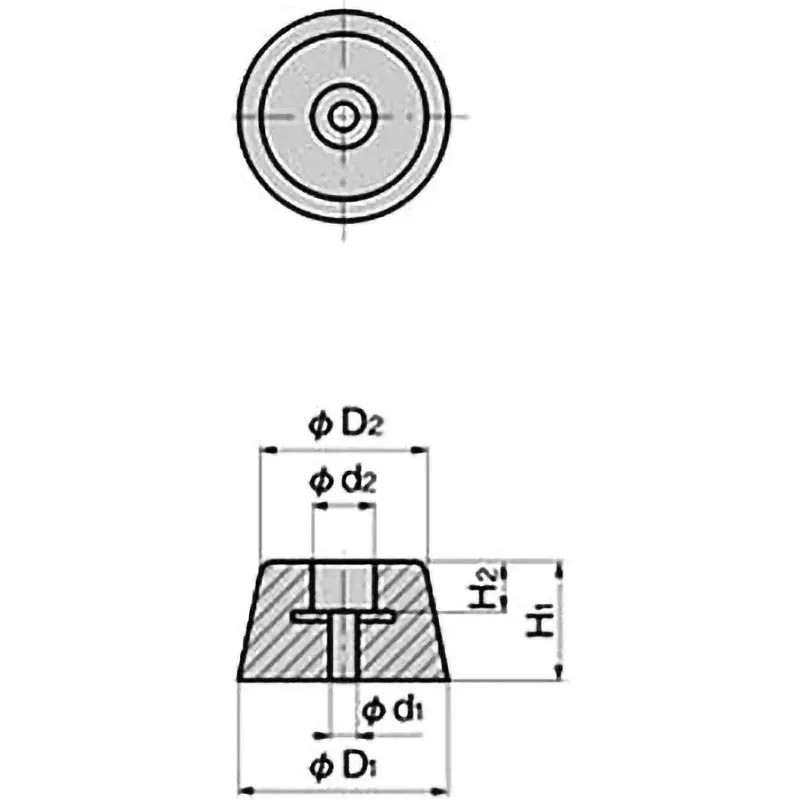

Dimension d2 (Φmm) |
32 |
Dimension d1 (Φmm) |
38 |
Import Country |
Direct Import from Japan |
Mass (g) |
35 |
Inner Diameter |
12 mm |
Dimension H1 |
24 mm |
Dimension H2 |
13 mm |
Operation Ambient Temperature (°C) |
70 or less |
Reference Tightening Torque (cNm) |
100 |
Load capacity (N) |
Deflection / 0.5mm: 193, 1.0mm: 353, 2.0mm: 659 |
Operating Temperature (c) |
(Around) 70 or less |
Washer Material |
Stainless steel plate (SUS430) |
