Ships within 25 days
View
View
View
View
| Weight | 1.14 Kg |
| Material | Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |

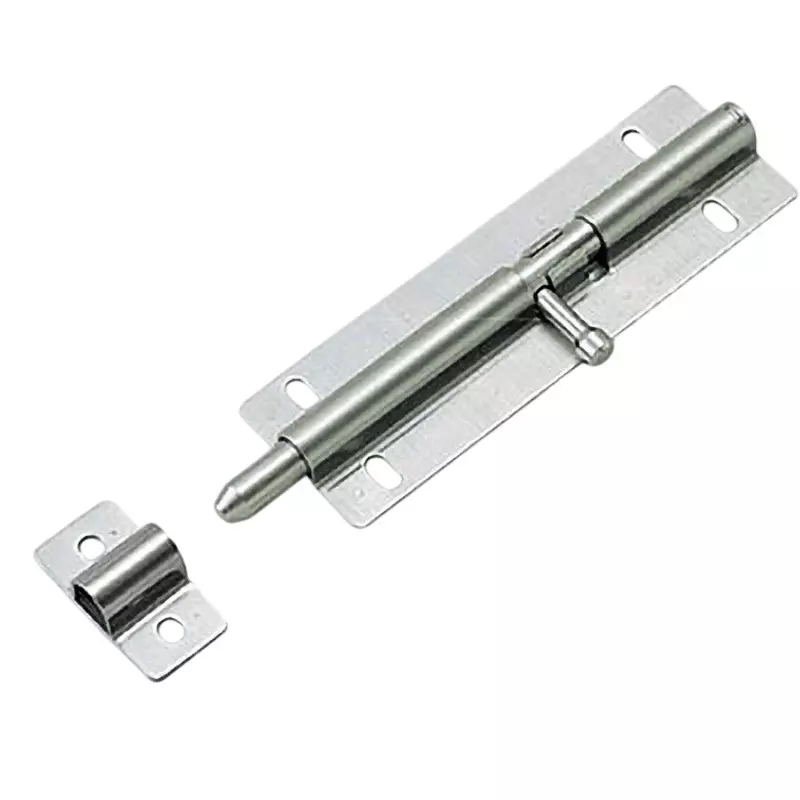

| Type of Product | Round Drop Bolt |
Weight |
1.14 Kg |
Material |
Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Round Drop Bolt |
Model No |
C-1883-1 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Pack of |
1 Pc |
Monotaro ID |
62815138 |

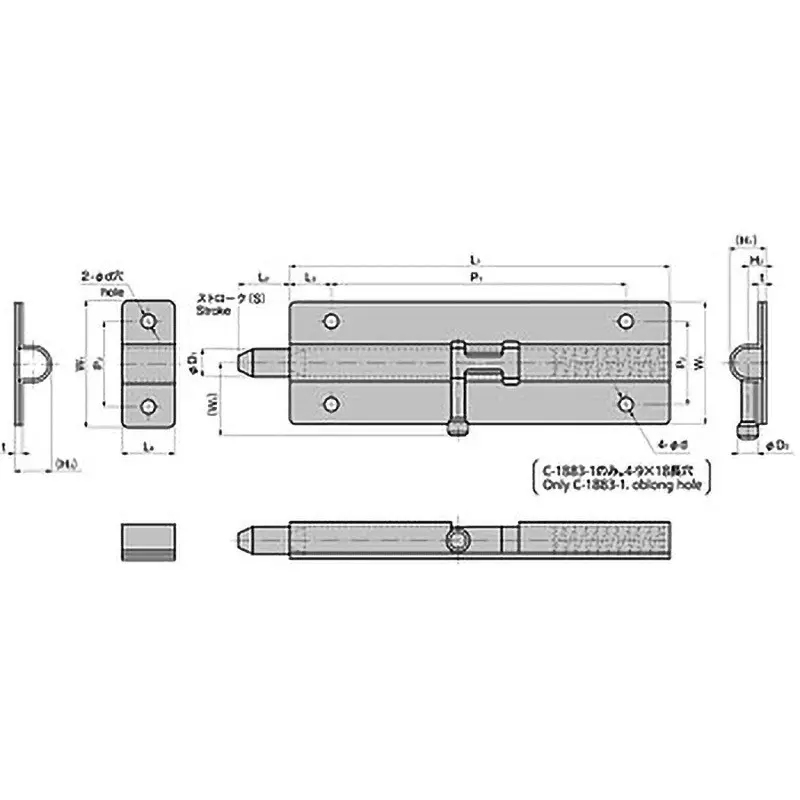

Dimensions L1 (mm) |
250 |
Dimensions l2 (mm) |
40 |
Dimensions s (mm) |
30 |
Dimension P1 (mm) |
190 |
TAKIGEN Code |
21526 |
Surface Finish Type |
Hairline Finish |
Dimensions H2 (mm) |
14 |
Dimensions H1 (mm) |
25.5 |
Dimension d2 (Φmm) |
15 |
Dimensions T (mm) |
4 |
Dimension d1 (Φmm) |
18 |
Dimension P2 (mm) |
50 |
Dimensions W2 (mm) |
48 |
Dimensions W1 (mm) |
80 |
Dimension L3 (mm) |
25 |
Dimensions l4 (mm) |
40 |
Dimension H3 (mm) |
26 |
Import Country |
Direct Import from Japan |
