| Material | EPDM |
| Country of Origin | Japan |
| Color | Black |

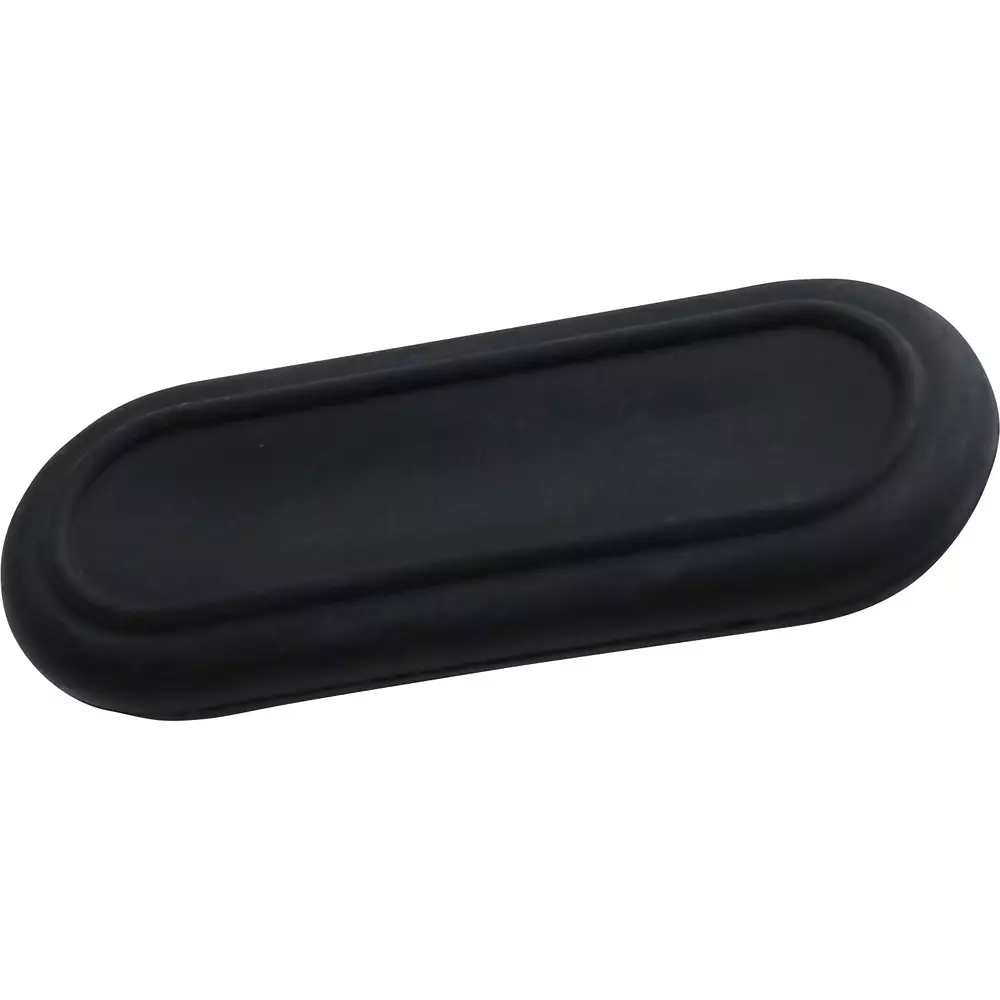

| Type of Product | Grommet With Flame Retardant Film |
Material |
EPDM |
Country of Origin |
Japan |
Color |
Black |
Type of Product |
Grommet With Flame Retardant Film |
Model No |
C-30-SG-20x60A-EP-UL |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Hardness |
50°±5° |
Type |
Grommet |
Monotaro ID |
61116807 |

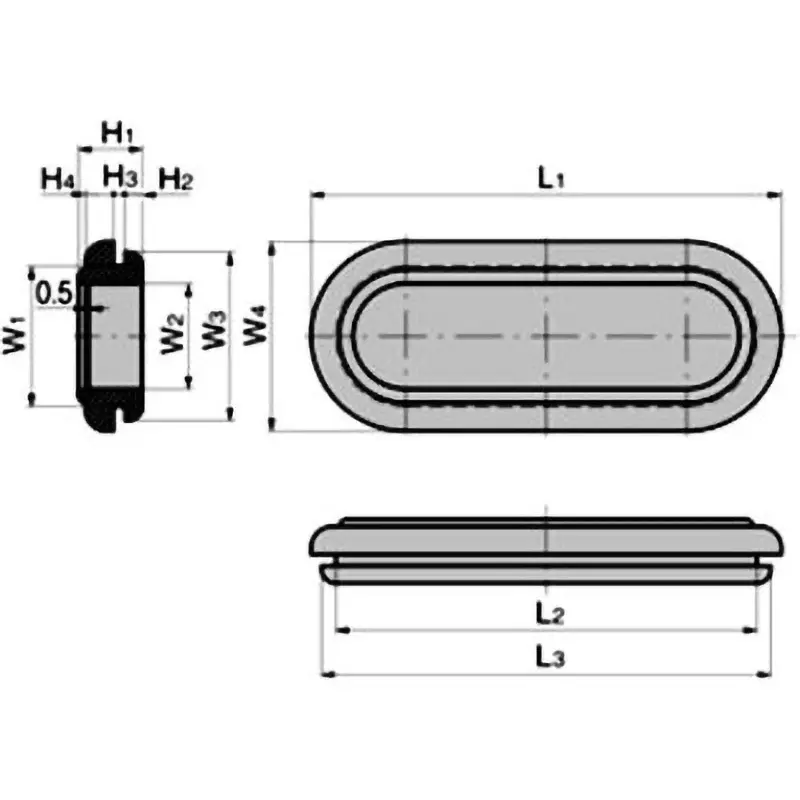

Dimension L3 (mm) |
64 |
Operating Temperature Range |
Up to 70°C |
Import Country |
Direct Import from Japan |
Mass (g) |
8 |
Dimension L2 |
60 mm |
Dimension L1 |
67 mm |
Dimension W1 (mm) |
20 |
Dimension H1 |
9.1 mm |
Dimension H2 |
2.5 mm |
Operation Ambient Temperature (°C) |
Up to 70 |
Dimension R |
10 mm |
Dimension L4 |
60 mm |
