Ships within 25 days
View
View
View
View
| Material | Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |

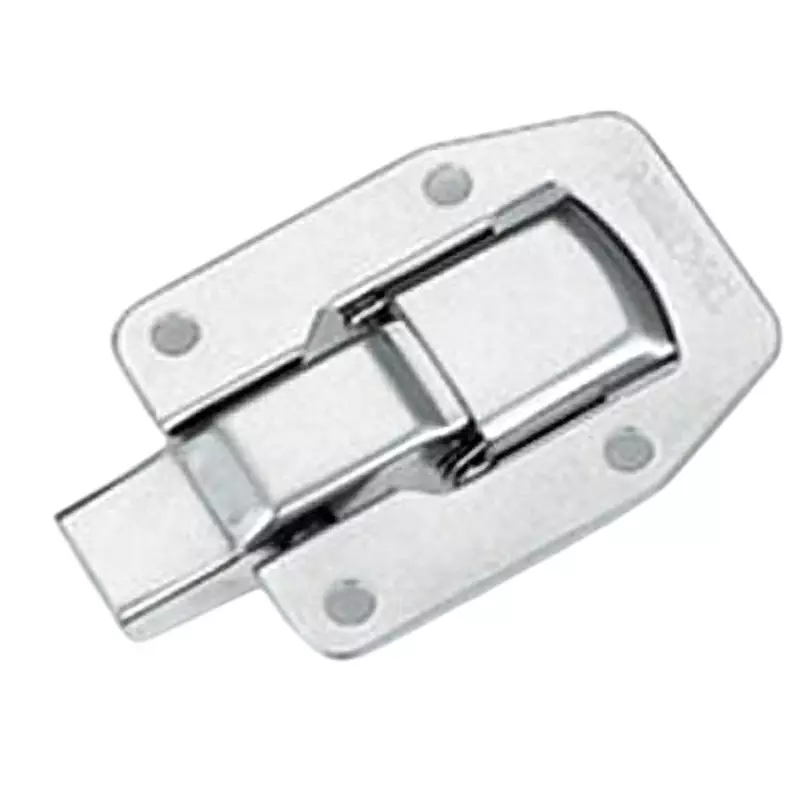

| Type of Product | Cuttle Lock With Lock |
| Model No | C-1534-2 |
Material |
Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Cuttle Lock With Lock |
Model No |
C-1534-2 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Pack of |
1 Pc |
Monotaro ID |
62814605 |

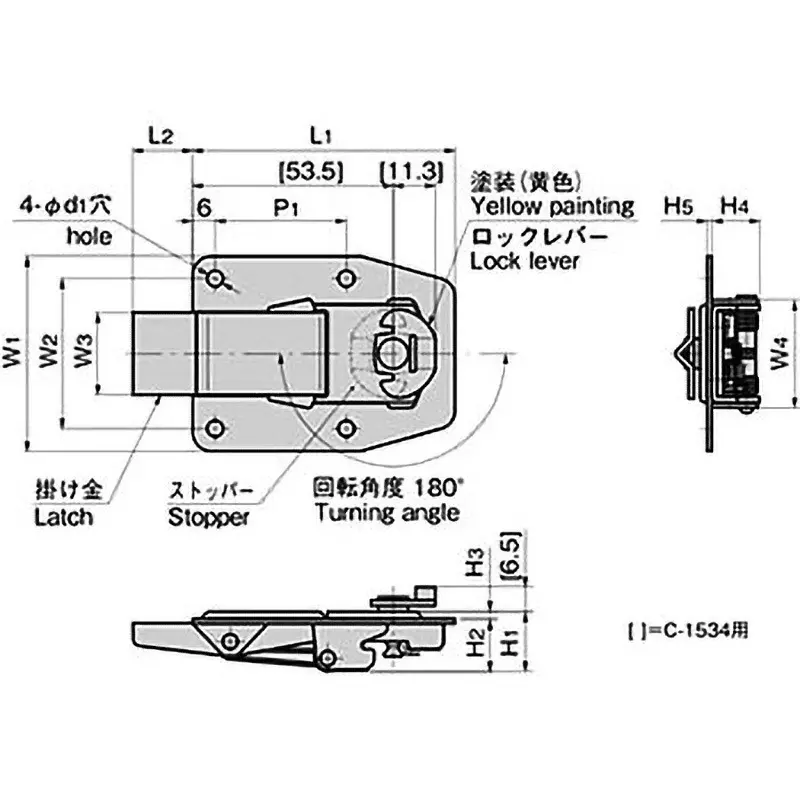

Dimensions L1 (mm) |
55 (Black Chrome Plating) |
Dimensions l2 (mm) |
13 |
Dimension P3 (mm) |
48 |
Dimension P1 (mm) |
30 |
TAKIGEN Code |
24477 |
Dimension P4 (mm) |
25 |
Surface Finish Type |
Gloss Barrel Polishing |
Dimensions H2 (mm) |
11.3 |
Dimensions H1 (mm) |
14 |
Dimension P2 (mm) |
30 |
Dimensions W2 (mm) |
34 |
Dimensions W1 (mm) |
44 |
Dimension H3 (mm) |
1.8 |
Dimension W3 (mm) |
14 |
Dimension H5 (mm) |
1 |
Dimension H4 (mm) |
10.3 |
Dimension W4 (mm) |
25.6 |
Dimension W5 (mm) |
34 |
Dimension W6 (mm) |
15 |
Import Country |
Direct Import from Japan |
