| Weight | 130 g |
| Material | Stainless Steel Sheet (SUS304) |
| Country of Origin | Japan |

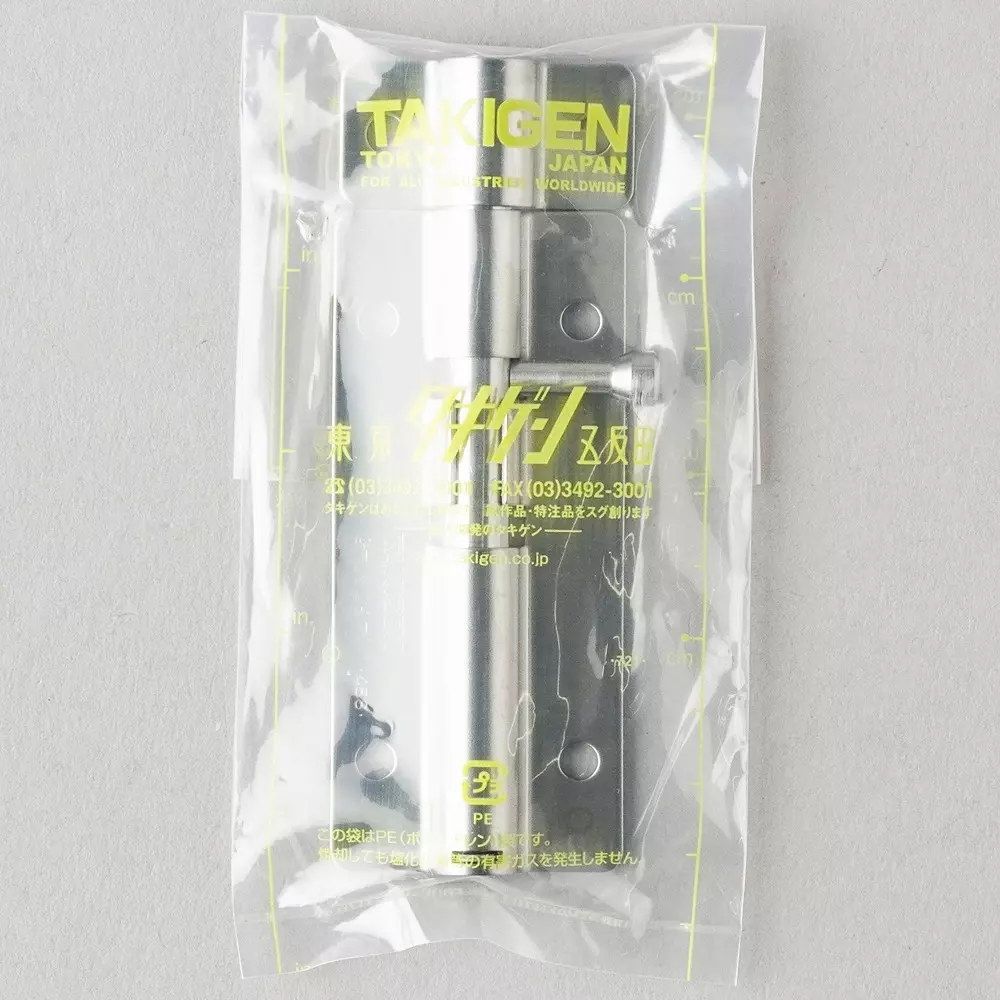

| Type of Product | Round Drop Bolt |
Weight |
130 g |
Material |
Stainless Steel Sheet (SUS304) |
Country of Origin |
Japan |
Type of Product |
Round Drop Bolt |
Model No |
C-1883-4 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Pack of |
1 Pc |
Monotaro ID |
61127063 |

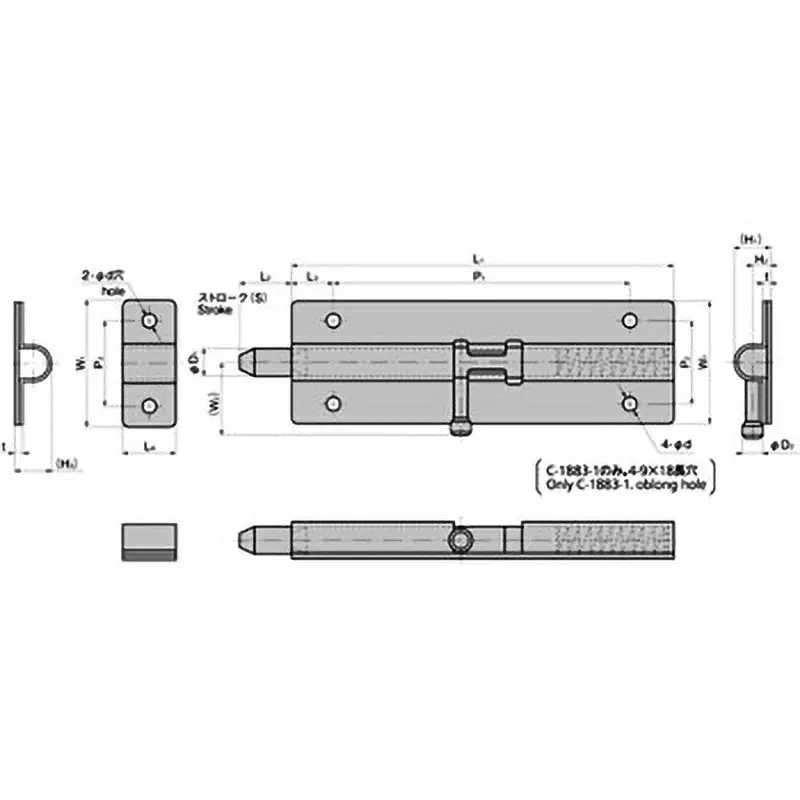

Dimensions L1 (mm) |
90 |
Dimensions l2 (mm) |
20 |
Dimensions s (mm) |
20 |
Dimension P1 (mm) |
60 |
TAKIGEN Code |
21549 |
Surface Finish Type |
Hairline Finish |
Dimensions H2 (mm) |
5.7 |
Dimensions H1 (mm) |
12 |
Dimension d2 (Φmm) |
7.5 |
Dimensions T (mm) |
2.4 |
Dimension d1 (Φmm) |
9 |
Dimension P2 (mm) |
28 |
Dimensions W2 (mm) |
25 |
Dimensions W1 (mm) |
40 |
Dimension L3 (mm) |
15 |
Dimensions l4 (mm) |
20 |
Dimension H3 (mm) |
12.4 |
Import Country |
Direct Import from Japan |
