Ships within 25 days
View
View
View
View
| Material | Steel Plate Cold Commercial (SPCC) |
| Country of Origin | Japan |
| Type of Product | Square Pulling Hinge (L75 X W38 X T2.0) |
| Model No | B-4-1-R |
Material |
Steel Plate Cold Commercial (SPCC) |
Country of Origin |
Japan |
Type of Product |
Square Pulling Hinge (L75 X W38 X T2.0) |
Model No |
B-4-1-R |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61105022 |

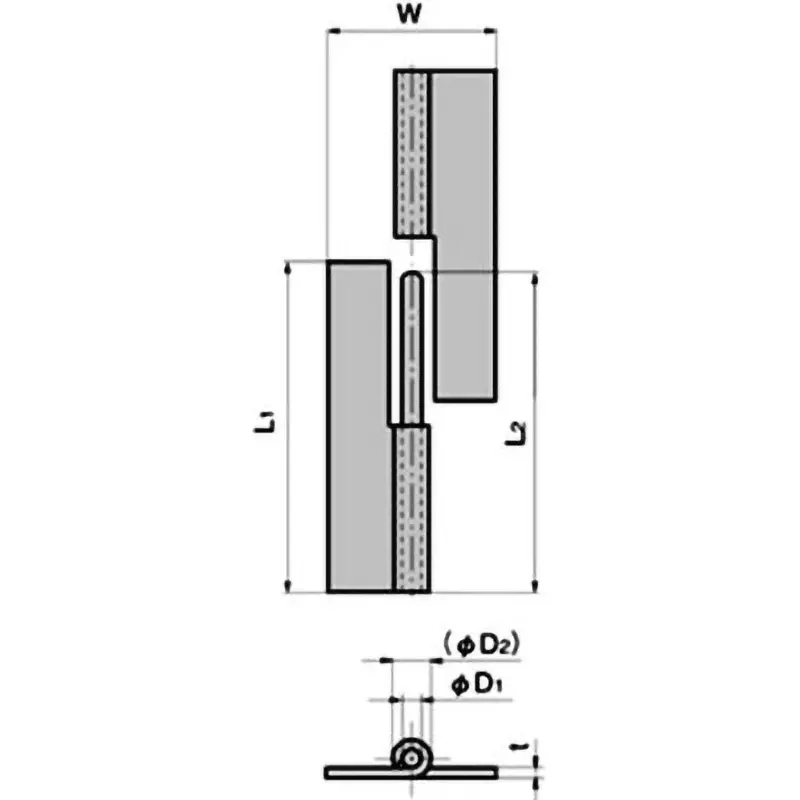

Dimension P1 (mm) |
24 |
TAKIGEN Code |
10022 |
Surface Finish Type |
Zinc plating chromate treatment (MFZn-C) |
Dimension d2 (Φmm) |
8.3000000000000007 |
Dimension d1 (Φmm) |
4 |
Dimension P2 (mm) |
30 |
Left or Right |
Right type |
Import Country |
Direct Import from Japan |
Mass (Kg) |
15 (reference door for 2 vertical specifications) |
Mass (g) |
65 |
Dimension L2 |
73 mm |
Dimension W |
38 mm |
Dimension L1 |
75 mm |
Dimension T |
38 mm |
with or without Hole |
None |
