Ships within 25 days
View
View
View
View
| Country of Origin | Japan |

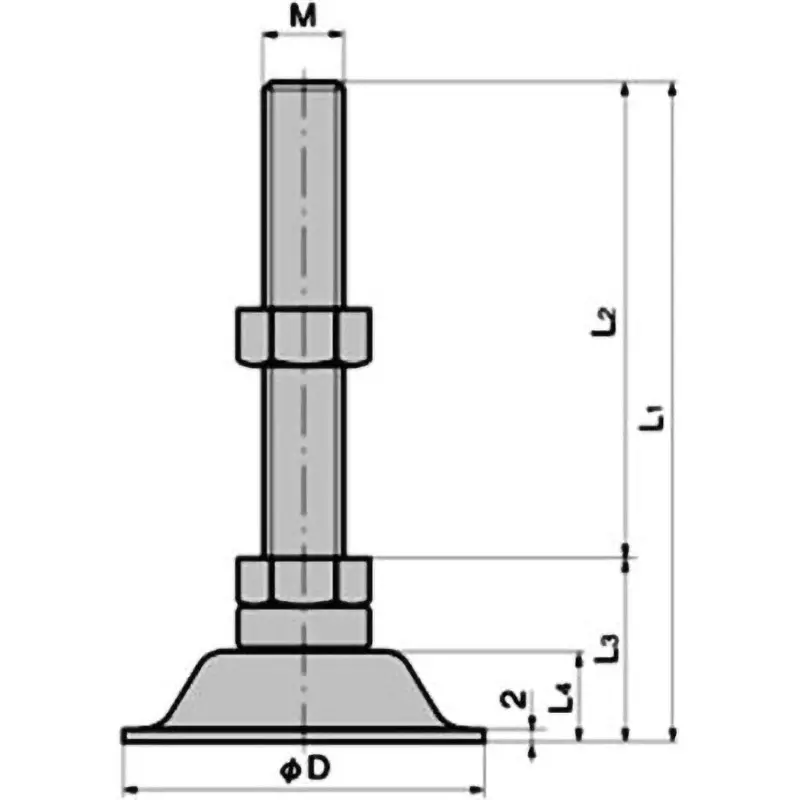

| Type of Product | Level Adjuster (M10 X L2 = 50) |
| Model No | KC-275-A-5 |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG. CO., LTD. |
Country of Origin |
Japan |
Type of Product |
Level Adjuster (M10 X L2 = 50) |
Model No |
KC-275-A-5 |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG. CO., LTD. |
Monotaro ID |
61128217 |
TAKIGEN Code |
21714 |
Surface Finish Type |
Zinc plating chromate treatment (MFZn-C) |
Dimension M |
M10x1.5 |
Dimension D (Φmm) |
37 |
Dimension L3 (mm) |
17 |
Bottom Material |
Hot rolled steel plate (SPHC) |
Shaft Material |
Carbon steel wire for cold heading (SWCH) |
Import Country |
Direct Import from Japan |
Mass (g) |
75 |
Dimension L2 |
50 mm |
Dimension L1 |
67 mm |
Dimension L4 |
10 mm |
Basic Working Load (kN) |
(Vertical) 1.96 |
Applicable Bracket |
KC-1275-C4-4N |
